element <feeRateSchedule> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	Schedule
Content:	complex, 1 attribute, 2 elements
Defined:	locally within ExerciseFeeSchedule complexType in fpml-shared-5-13.xsd; see XML source

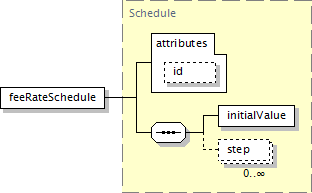

Component Diagram

XML Representation Summary

<feeRateSchedule

xsd:ID

Content:

initialValue, step*

</feeRateSchedule>

Content model elements (2):

initialValue (defined in Schedule complexType),

step (defined in Schedule complexType)

Included in content model of elements (2):

exerciseFeeSchedule (in americanExercise),

exerciseFeeSchedule (in bermudaExercise)

Annotation

The exercise free rate schedule. The fees are expressed as percentage rates of the notional being exercised. The currency of the fee is assumed to be that of the notional schedule referenced.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="feeRateSchedule" type="Schedule"/>
