complexType "CashSettlementReferenceBanks"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 1 element
Defined:
globally in fpml-shared-5-13.xsd; see XML source
Includes:
definitions of 1 attribute, 1 element
Used:
at 5 locations

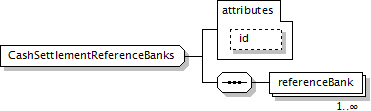

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
referenceBank+
</...>
Content Model Elements (1):
referenceBank
All Direct / Indirect Based Elements (5):
cashSettlementReferenceBanks (defined in CashPriceMethod complexType),
cashSettlementReferenceBanks (defined in MidMarketValuationMethod complexType),
cashSettlementReferenceBanks (defined in ReplacementValueMethodBase complexType),
cashSettlementReferenceBanks (defined in SettlementRateSource complexType),
cashSettlementReferenceBanks (in crossCurrencyMethod)
Known Usage Locations
Annotation
A type defining the list of reference institutions polled for relevant rates or prices when determining the cash settlement amount for a product where cash settlement is applicable.
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="CashSettlementReferenceBanks">
<xsd:sequence>
<xsd:element maxOccurs="unbounded" name="referenceBank" type="ReferenceBank"/>
</xsd:sequence>
<xsd:attribute name="id" type="xsd:ID"/>
</xsd:complexType>
Attribute Detail (all declarations; defined within this component only; 1/1)
id
Type:
xsd:ID, predefined
Use:
optional
XML Source (see within schema source)
<xsd:attribute name="id" type="xsd:ID"/>
Content Element Detail (all declarations; defined within this component only; 1/1)
referenceBank
Type:
ReferenceBank, complex content
An institution (party) identified by means of a coding scheme and an optional name.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="referenceBank" type="ReferenceBank"/>
