complexType "DeterminationMethod"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
simple, 2 attributes
Defined:
globally in fpml-shared-5-13.xsd; see XML source
Includes:
definitions of 2 attributes
Used:
at 10 locations

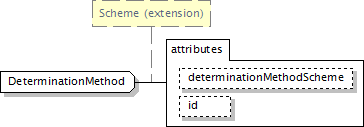

Component Diagram
XML Representation Summary
<...

determinationMethodScheme
 =
xsd:anyURI : "http://www.fpml.org/coding-scheme/determination-method"
id
 =
xsd:ID

>

Content:
{ xsd:normalizedString }
</...>
Simple Content Restrictions:
MaxLength:
255
MinLength:
0
All Direct / Indirect Based Elements (10):
determinationMethod (defined in Composite complexType),
determinationMethod (defined in CurrencyAndDeterminationMethod.model group),
determinationMethod (defined in Price complexType),
determinationMethod (defined in ReturnSwapNotional complexType),
determinationMethod (in principalExchangeAmount in principalExchangeDescriptions),
expirationTimeDetermination,
initialLevelSource (defined in CalculationFromObservation complexType),
initialLevelSource (defined in CalculationFromObservation complexType),
latestExerciseTimeDetermination (defined in CommodityAmericanExercise complexType),
latestExerciseTimeDetermination (defined in SharedAmericanExercise complexType)
Known Usage Locations
Annotation
Coding scheme that specifies the method according to which an amount or a date is determined.
Type Definition Detail
Type Derivation Tree
xsd:normalizedString (restriction)
  NormalizedString (restriction)
      Scheme (extension)
          DeterminationMethod
Derivation:
extension of Scheme
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="DeterminationMethod">
<xsd:simpleContent>
<xsd:extension base="Scheme">
<xsd:attribute default="http://www.fpml.org/coding-scheme/determination-method" name="determinationMethodScheme" type="NonEmptyURI"/>
<xsd:attribute name="id" type="xsd:ID"/>
</xsd:extension>
</xsd:simpleContent>
</xsd:complexType>
Attribute Detail (all declarations; defined within this component only; 2/2)
determinationMethodScheme
Type:
NonEmptyURI
Use:
optional
Attribute Value
xsd:anyURI
MinLength:
1
Default:
"http://www.fpml.org/coding-scheme/determination-method"
XML Source (see within schema source)
<xsd:attribute default="http://www.fpml.org/coding-scheme/determination-method" name="determinationMethodScheme" type="NonEmptyURI"/>
id
Type:
xsd:ID, predefined
Use:
optional
XML Source (see within schema source)
<xsd:attribute name="id" type="xsd:ID"/>
