element <paymentDetail> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
PaymentDetail
Content:
complex, 1 attribute, 4 elements
Defined:
locally within IndependentAmount complexType in fpml-shared-5-13.xsd; see XML source

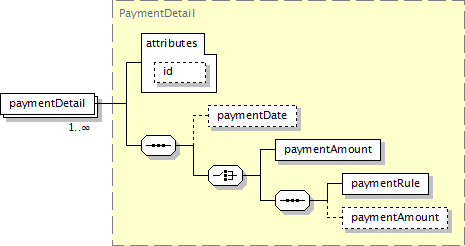

Component Diagram
XML Representation Summary
<paymentDetail

id
 =
xsd:ID

>

Content:
paymentDate?, (paymentAmount | (paymentRule, paymentAmount?))
</paymentDetail>
Content model elements (4):
paymentAmount (in paymentDetail),
paymentAmount (in paymentDetail),
paymentDate (in paymentDetail),
paymentRule (in paymentDetail)
Included in content model of elements (1):
independentAmount
Annotation
A container element allowing a schedule of payments associated with the Independent Amount.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" name="paymentDetail" type="PaymentDetail"/>
