complexType "InflationRateCalculationBase"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 1 attribute, 11 elements
Defined:	globally in fpml-shared-5-13.xsd; see XML source
Used:	at 1 location

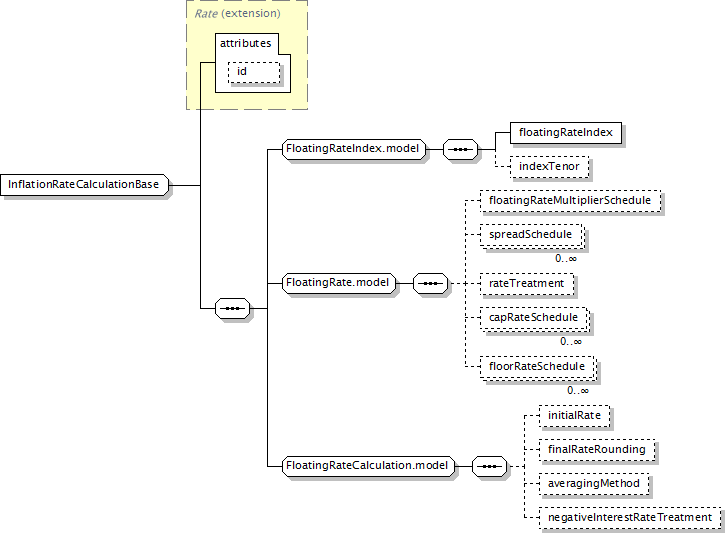

Component Diagram

XML Representation Summary

<...

xsd:ID

Content:

floatingRateIndex, indexTenor?, floatingRateMultiplierSchedule?, spreadSchedule*, rateTreatment?, capRateSchedule*, floorRateSchedule*, initialRate?, finalRateRounding?, averagingMethod?, negativeInterestRateTreatment?

</...>

Content Model Elements (11):

averagingMethod (defined in FloatingRateCalculation.model group),

capRateSchedule,

finalRateRounding,

floatingRateIndex (defined in FloatingRateIndex.model group),

floatingRateMultiplierSchedule,

floorRateSchedule,

indexTenor (defined in FloatingRateIndex.model group),

initialRate,

negativeInterestRateTreatment,

rateTreatment,

spreadSchedule (defined in FloatingRate.model group)

Known Direct Subtypes (1):

InflationRateCalculation

All Direct / Indirect Based Elements (1):

inflationRateCalculation

Known Usage Locations

In derivations of other global types (1):

InflationRateCalculation (as extension base)

Annotation

A type defining the floating rate and definitions relating to the calculation of floating rate amounts. This type mimics the "FloatingRateCalculation" type but excludes the option of defining modular calculated rates and fallback rates. It provides an extension point for the InflationRateCalculation which does not require those features.

Type Definition Detail

Type Derivation Tree

Rate (extension)

InflationRateCalculationBase

XML Source (w/o annotations (1); see within schema source)

<xsd:complexType name="InflationRateCalculationBase">

<xsd:complexContent>

<xsd:extension base="Rate">

<xsd:sequence>

<xsd:group ref="FloatingRateIndex.model"/>

<xsd:group ref="FloatingRate.model"/>

<xsd:group ref="FloatingRateCalculation.model"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>
