complexType "RelatedParty"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 4 elements
Defined:
globally in fpml-shared-5-13.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 7 locations

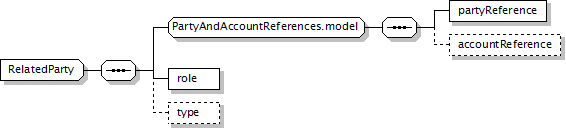

Component Diagram
XML Representation Summary
<...>

Content:
partyReference, accountReference?, role, type?
</...>
Content Model Elements (4):
accountReference (defined in PartyAndAccountReferences.model group),
partyReference (defined in PartyAndAccountReferences.model group),
role (defined in RelatedParty complexType),
type (defined in RelatedParty complexType)
All Direct / Indirect Based Elements (7):
relatedParty (defined in PartyTradeInformation complexType),
relatedParty (in allocation defined in Allocations complexType),
relatedParty (in packageInformation),
relatedParty (in partyProfile),
relatedParty (in partyTradeInformation in withdrawal),
relatedParty (in reportingRegime defined in PartyTradeInformation complexType),
relatedParty (in requestAllocation)
Known Usage Locations
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="RelatedParty">
<xsd:sequence>
<xsd:group ref="PartyAndAccountReferences.model"/>
<xsd:element name="role" type="PartyRole"/>
<xsd:element minOccurs="0" name="type" type="PartyRoleType"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 2/4)
role
Type:
PartyRole, simple content
The category of the relationship. The related party performs the role specified in this field for the base party. For example, if the role is "Guarantor", the related party acts as a guarantor for the base party.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="role" type="PartyRole"/>
type
Type:
PartyRoleType, simple content
Additional definition refining the type of relationship. For example, if the "role" is Guarantor, this element may be used to specify whether all positions are guaranteed, or only a subset of them.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="type" type="PartyRoleType"/>
