element <beneficiary> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
Beneficiary
Content:
complex, 4 elements
Defined:
locally within SettlementInstruction complexType in fpml-shared-5-13.xsd; see XML source

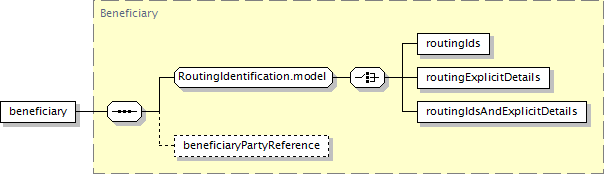

Component Diagram
XML Representation Summary
<beneficiary>

Content:
(routingIds | routingExplicitDetails | routingIdsAndExplicitDetails), beneficiaryPartyReference?
</beneficiary>
Content model elements (4):
beneficiaryPartyReference (defined in Beneficiary complexType),
routingExplicitDetails,
routingIds (defined in RoutingIdentification.model group),
routingIdsAndExplicitDetails
Included in content model of elements (5):
receiverSettlementInstruction (in payment in loanAllocationNotification),
receiverSettlementInstruction (in payment in loanTradeNotification),
settlementInstruction (defined in SettlementInformation complexType),
settlementInstruction (in eventPayment),
settlementInstruction (in settlementDetails)
Annotation
The ultimate beneficiary of the funds. The beneficiary can be identified either by an account at the beneficiaryBank (qv) or by explicit routingInformation. This element provides for the latter.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="beneficiary" type="Beneficiary"/>
