complexType "Beneficiary"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 4 elements
Defined:
globally in fpml-shared-5-13.xsd; see XML source
Includes:
definition of 1 element
Used:
at 2 locations

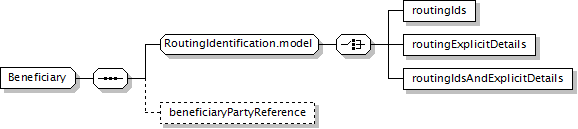

Component Diagram
XML Representation Summary
<...>

Content:
(routingIds | routingExplicitDetails | routingIdsAndExplicitDetails), beneficiaryPartyReference?
</...>
Content Model Elements (4):
beneficiaryPartyReference (defined in Beneficiary complexType),
routingExplicitDetails,
routingIds (defined in RoutingIdentification.model group),
routingIdsAndExplicitDetails
All Direct / Indirect Based Elements (2):
beneficiary (defined in SettlementInstruction complexType),
beneficiaryBank (defined in SettlementInstruction complexType)
Known Usage Locations
Annotation
A type defining the beneficiary of the funds.
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="Beneficiary">
<xsd:sequence>
<xsd:group ref="RoutingIdentification.model"/>
<xsd:element minOccurs="0" name="beneficiaryPartyReference" type="PartyReference"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/4)
beneficiaryPartyReference
Type:
PartyReference, empty content
Link to the party acting as beneficiary. This element can only appear within the beneficiary container element.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="beneficiaryPartyReference" type="PartyReference"/>
