element <splitSettlement> (local)

Namespace:	http://www.fpml.org/FpML-5/confirmation
Type:	SplitSettlement
Content:	complex, 3 elements
Defined:	locally within SettlementInstruction complexType in fpml-shared-5-13.xsd; see XML source

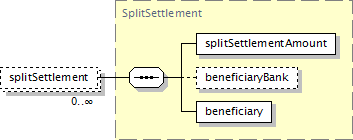

Component Diagram

XML Representation Summary

Content:

splitSettlementAmount, beneficiaryBank?, beneficiary

</splitSettlement>

Content model elements (3):

beneficiary (in splitSettlement),

beneficiaryBank (in splitSettlement),

splitSettlementAmount

Included in content model of elements (5):

receiverSettlementInstruction (in payment in loanAllocationNotification),

receiverSettlementInstruction (in payment in loanTradeNotification),

settlementInstruction (defined in SettlementInformation complexType),

settlementInstruction (in eventPayment),

settlementInstruction (in settlementDetails)

Annotation

The set of individual payments that are to be made when a currency payment settling a trade needs to be split between a number of ultimate beneficiaries. Each split payment may need to have its own routing information.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" minOccurs="0" name="splitSettlement" type="SplitSettlement"/>
