complexType "SensitivitySet"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 3 elements
Defined:
globally in fpml-valuation-5-13.xsd; see XML source
Includes:
definitions of 1 attribute, 3 elements
Used:
at 1 location

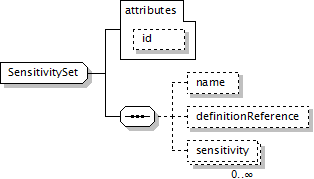

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
name?, definitionReference?, sensitivity*
</...>
Content Model Elements (3):
definitionReference,
name (in sensitivitySet),
sensitivity
All Direct / Indirect Based Elements (1):
sensitivitySet
Known Usage Locations
Annotation
A collection of sensitivities. References a definition that explains the meaning/type of the sensitivities.
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="SensitivitySet">
<xsd:sequence>
<xsd:element minOccurs="0" name="name" type="NonEmptyToken"/>
<xsd:element minOccurs="0" name="definitionReference" type="SensitivitySetDefinitionReference"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="sensitivity" type="Sensitivity"/>
</xsd:sequence>
<xsd:attribute name="id" type="xsd:ID"/>
</xsd:complexType>
Attribute Detail (all declarations; defined within this component only; 1/1)
id
Type:
xsd:ID, predefined
Use:
optional
XML Source (see within schema source)
<xsd:attribute name="id" type="xsd:ID"/>
Content Element Detail (all declarations; defined within this component only; 3/3)
definitionReference
Type:
SensitivitySetDefinitionReference, empty content
A reference to a sensitivity set definition.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="definitionReference" type="SensitivitySetDefinitionReference"/>
name
Type:
NonEmptyToken, simple content
Simple Content
xsd:token
minLength:
1
XML Source (see within schema source)
<xsd:element minOccurs="0" name="name" type="NonEmptyToken"/>
sensitivity
Type:
Sensitivity, simple content
Simple Content
xsd:decimal
XML Source (see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="sensitivity" type="Sensitivity"/>
