element <assetValuation> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
AssetValuation
Content:
complex, 2 attributes, 4 elements
Defined:
locally within ValuationSet complexType in fpml-valuation-5-13.xsd; see XML source

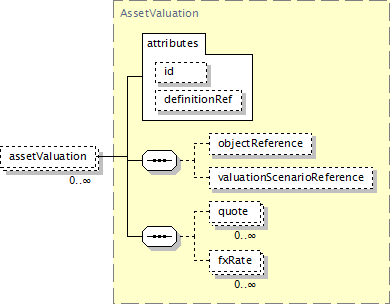

Component Diagram
XML Representation Summary
<assetValuation

id
 =
xsd:ID
definitionRef
 =
xsd:IDREF

>

Content:
objectReference?, valuationScenarioReference?, quote*, fxRate*
</assetValuation>
Content model elements (4):
fxRate (in assetValuation),
objectReference,
quote (in assetValuation),
valuationScenarioReference (defined in Valuation complexType)
Included in content model of elements (1):
valuationSet
Annotation
Valuations reported in this valuation set. These values can be values (NPVs, prices, etc.) or risks (DAR, etc.) and can include sensitivities.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="assetValuation" type="AssetValuation"/>
