element <valuationScenario> (local)
Namespace:
http://www.fpml.org/FpML-5/confirmation
Type:
ValuationScenario
Content:
complex, 1 attribute, 5 elements
Defined:
locally within ValuationSet complexType in fpml-valuation-5-13.xsd; see XML source

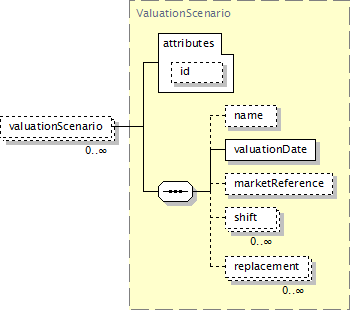

Component Diagram
XML Representation Summary
<valuationScenario

id
 =
xsd:ID

>

Content:
name?, valuationDate, marketReference?, shift*, replacement*
</valuationScenario>
Content model elements (5):
marketReference,
name (in valuationScenario),
replacement,
shift (in valuationScenario),
valuationDate (in valuationScenario)
Included in content model of elements (1):
valuationSet
Annotation
Valuation scenerios used (requested/reported) in this valuation set. E.g., the EOD valuation scenario for a particular value date. Used for the first occurrence of a valuation scenario in a document.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="valuationScenario" type="ValuationScenario"/>
