complexType "VolatilityAmount"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 6 elements
Defined:
globally in fpml-volatility-swaps-5-13.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

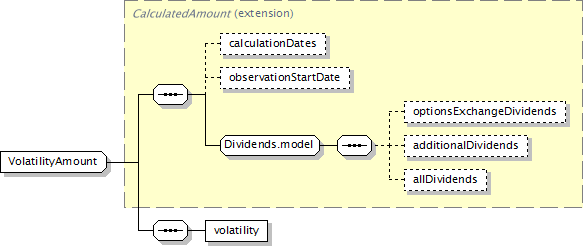

Component Diagram
XML Representation Summary
<...>

Content:
calculationDates?, observationStartDate?, optionsExchangeDividends?, additionalDividends?, allDividends?, volatility
</...>
Content Model Elements (6):
additionalDividends,
allDividends,
calculationDates (defined in CalculatedAmount complexType),
observationStartDate (defined in CalculatedAmount complexType),
optionsExchangeDividends,
volatility
All Direct / Indirect Based Elements (1):
amount  (defined in VolatilityLeg complexType)
Known Usage Locations
Type Definition Detail
Type Derivation Tree
CalculatedAmount (extension)
  VolatilityAmount
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="VolatilityAmount">
<xsd:complexContent>
<xsd:extension base="CalculatedAmount">
<xsd:sequence>
<xsd:element name="volatility" type="Volatility"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/6)
volatility
Type:
Volatility, complex content
Specifies Volatility.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="volatility" type="Volatility"/>
