complexType "VolatilitySwap"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 8 elements
Defined:
globally in fpml-volatility-swaps-5-13.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

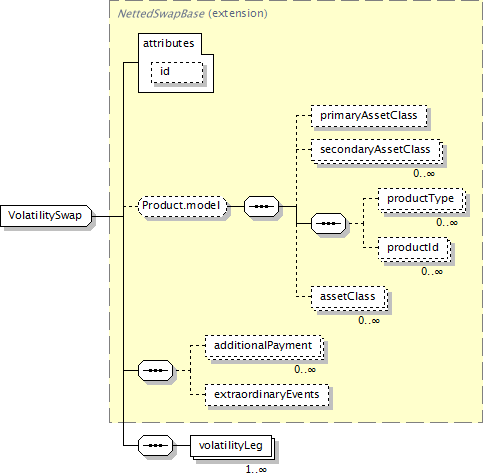

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
(primaryAssetClass?, secondaryAssetClass*, productType*, productId*, assetClass*)?, additionalPayment*, extraordinaryEvents?, volatilityLeg+
</...>
Content Model Elements (8):
additionalPayment (defined in NettedSwapBase complexType),
assetClass,
extraordinaryEvents (defined in NettedSwapBase complexType),
primaryAssetClass,
productId (defined in Product.model group),
productType (defined in Product.model group),
secondaryAssetClass,
volatilityLeg (in volatilitySwap)
All Direct / Indirect Based Elements (1):
volatilitySwap
Known Usage Locations
Annotation
A Volatility Swap.
Type Definition Detail
Type Derivation Tree
Product (extension)
  NettedSwapBase (extension)
      VolatilitySwap
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="VolatilitySwap">
<xsd:complexContent>
<xsd:extension base="NettedSwapBase">
<xsd:sequence>
<xsd:element maxOccurs="unbounded" name="volatilityLeg" type="VolatilityLeg"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/8)
volatilityLeg
Type:
VolatilityLeg, complex content
XML Source (see within schema source)
<xsd:element maxOccurs="unbounded" name="volatilityLeg" type="VolatilityLeg"/>
