complexType "CreditLimit"

Namespace:	http://www.fpml.org/FpML-5/pretrade
Content:	complex, 9 elements
Defined:	globally in fpml-business-events-5-13.xsd; see XML source
Includes:	definitions of 2 elements
Used:	at 2 locations

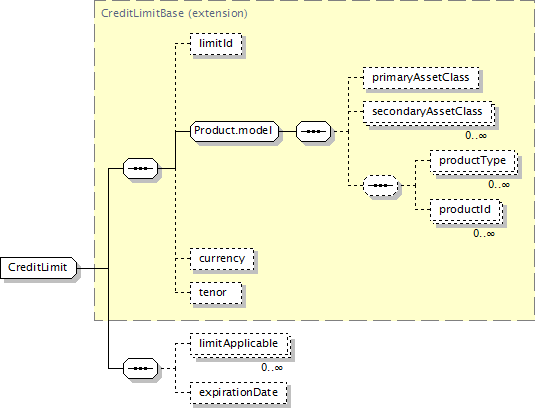

Component Diagram

XML Representation Summary

<...>

Content:

limitId?, primaryAssetClass?, secondaryAssetClass*, (productType*, productId*)?, currency?, tenor?, limitApplicable*, expirationDate?

</...>

Content Model Elements (9):

currency (defined in CreditLimitBase complexType),

expirationDate (defined in CreditLimit complexType),

limitApplicable,

limitId,

primaryAssetClass,

productId (defined in Product.model group),

productType (defined in Product.model group),

secondaryAssetClass,

tenor

Known Direct Subtypes (1):

CreditLimitExtended

All Direct / Indirect Based Elements (2):

creditLimit (defined in CreditLimitInformationExtended complexType),

creditLimit (in creditLimitInformation in creditLimitReport)

Known Usage Locations

In derivations of other global types (1):

CreditLimitExtended (as extension base)
As direct type of elements (1):

creditLimit (in creditLimitInformation in creditLimitReport)

Annotation

A structure describing a credit limit with applicability constraints.

Type Definition Detail

Type Derivation Tree

CreditLimitBase (extension)

CreditLimit

XML Source (w/o annotations (1); see within schema source)

<xsd:complexType name="CreditLimit">

<xsd:complexContent>

<xsd:extension base="CreditLimitBase">

<xsd:sequence>

<xsd:element maxOccurs="unbounded" minOccurs="0" name="limitApplicable" type="LimitApplicable"/>

<xsd:element minOccurs="0" name="expirationDate" type="xsd:dateTime"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 2/9)

expirationDate

Type:

xsd:dateTime, predefined, simple content

XML Source (see within schema source)

<xsd:element minOccurs="0" name="expirationDate" type="xsd:dateTime"/>

limitApplicable

Type:

LimitApplicable, complex content

XML Source (see within schema source)

<xsd:element maxOccurs="unbounded" minOccurs="0" name="limitApplicable" type="LimitApplicable"/>
