element <otherPartyPayment> (local)

Namespace:	http://www.fpml.org/FpML-5/pretrade
Type:	Payment
Content:	complex, 1 attribute, 7 elements
Defined:	locally within Trade complexType in fpml-doc-5-13.xsd; see XML source

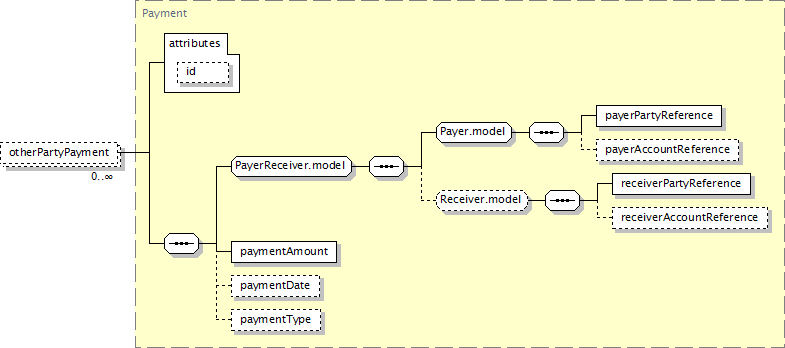

Component Diagram

XML Representation Summary

<otherPartyPayment

xsd:ID

Content:

payerPartyReference, payerAccountReference?, (receiverPartyReference, receiverAccountReference?)?, paymentAmount, paymentDate?, paymentType?

</otherPartyPayment>

Content model elements (7):

payerAccountReference,

payerPartyReference,

paymentAmount (defined in Payment complexType),

paymentDate (defined in Payment complexType),

paymentType,

receiverAccountReference,

receiverPartyReference

Included in content model of elements (6):

originalTrade,

trade (defined in TradePackage complexType),

trade (defined in TradingEventsBase.model group),

trade (in dataDocument),

trade (in orderStatus in orderStatusNotification),

trade (in orderStatus in orderStatusReport)

Annotation

Other fees or additional payments associated with the trade, e.g. broker commissions, where one or more of the parties involved are not principal parties involved in the trade.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" minOccurs="0" name="otherPartyPayment" type="Payment"/>
