complexType "Payment"
Namespace:
http://www.fpml.org/FpML-5/pretrade
Content:
complex, 1 attribute, 7 elements
Defined:
globally in fpml-shared-5-13.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 11 locations

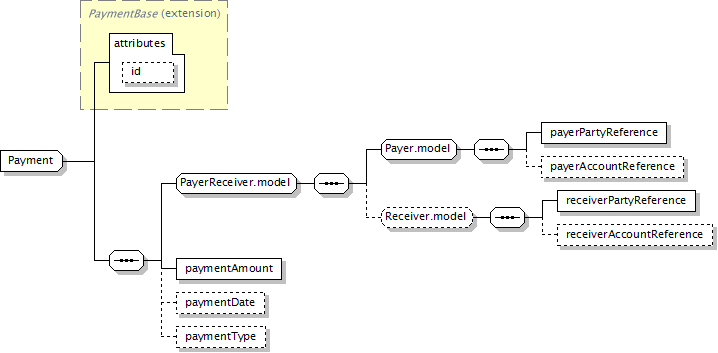

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
payerPartyReference, payerAccountReference?, (receiverPartyReference, receiverAccountReference?)?, paymentAmount, paymentDate?, paymentType?
</...>
Content Model Elements (7):
payerAccountReference,
payerPartyReference,
paymentAmount (defined in Payment complexType),
paymentDate (defined in Payment complexType),
paymentType,
receiverAccountReference,
receiverPartyReference
All Direct / Indirect Based Elements (11):
additionalPayment (defined in FxPerformanceSwap complexType),
additionalPayment (defined in Swap complexType),
additionalPayment (in capFloor),
additionalPayment (in fra),
additionalPayment (in fxFlexibleForward),
additionalPayment (in fxForwardVolatilityAgreement),
exchangedCurrency1,
exchangedCurrency2,
otherPartyPayment,
premium (in capFloor),
premium (in swaption)
Known Usage Locations
Type Definition Detail
Type Derivation Tree
PaymentBase (extension)
  Payment
XML Source (w/o annotations (5); see within schema source)
<xsd:complexType name="Payment">
<xsd:complexContent>
<xsd:extension base="PaymentBase">
<xsd:sequence>
<xsd:group ref="PayerReceiver.model"/>
<xsd:element name="paymentAmount" type="NonNegativeMoney"/>
<xsd:element minOccurs="0" name="paymentDate" type="AdjustableOrAdjustedDate"/>
<xsd:element minOccurs="0" name="paymentType" type="PaymentType"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 3/7)
paymentAmount
Type:
NonNegativeMoney, complex content
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="paymentAmount" type="NonNegativeMoney"/>
paymentDate
Type:
AdjustableOrAdjustedDate, complex content
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="paymentDate" type="AdjustableOrAdjustedDate"/>
paymentType
Type:
PaymentType, simple content
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="paymentType" type="PaymentType"/>
