complexType "FxPerformanceFixedLeg"
Namespace:
http://www.fpml.org/FpML-5/pretrade
Content:
complex, 5 elements
Defined:
globally in fpml-fx-5-13.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

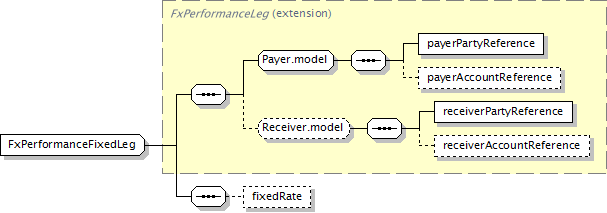

Component Diagram
XML Representation Summary
<...>

Content:
payerPartyReference, payerAccountReference?, (receiverPartyReference, receiverAccountReference?)?, fixedRate?
</...>
Content Model Elements (5):
fixedRate (in fixedLeg),
payerAccountReference,
payerPartyReference,
receiverAccountReference,
receiverPartyReference
All Direct / Indirect Based Elements (1):
fixedLeg
Known Usage Locations
Annotation
FX Performance Fixed Leg describes Fixed FX Rate Payer and Fixed Rate.
Type Definition Detail
Type Derivation Tree
FxPerformanceLeg (extension)
  FxPerformanceFixedLeg
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="FxPerformanceFixedLeg">
<xsd:complexContent>
<xsd:extension base="FxPerformanceLeg">
<xsd:sequence>
<xsd:element minOccurs="0" name="fixedRate" type="PositiveDecimal"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/5)
fixedRate
Type:
PositiveDecimal, simple content
Fixed Rate means a rate, expressed as a decimal, equal to the per annum rate specified as such in the Confirmation for the Non-Deliverable Swap FX Transaction or that party (i.e., a per annum rate of 15.10% as specified in a Confirmation shall be expressed as 0.1510 for calculation purposes).
Simple Content
xsd:decimal
minExclusive:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="fixedRate" type="PositiveDecimal"/>
