element <exchangedCurrency1> (local)
Namespace:
http://www.fpml.org/FpML-5/pretrade
Type:
Payment
Content:
complex, 1 attribute, 7 elements
Defined:
locally within FxCoreDetails.model group in fpml-fx-5-13.xsd; see XML source

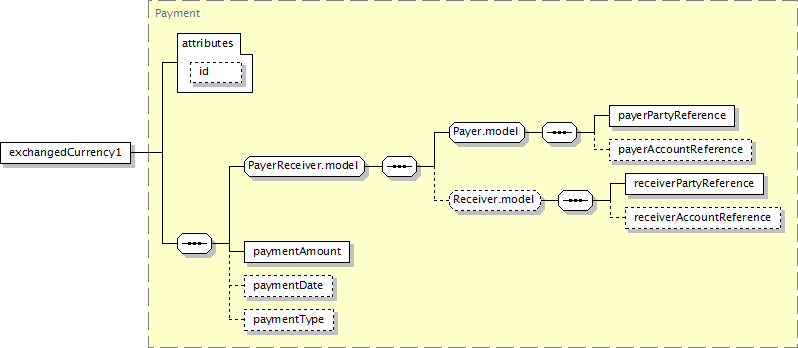

Component Diagram
XML Representation Summary
<exchangedCurrency1

id
 =
xsd:ID

>

Content:
payerPartyReference, payerAccountReference?, (receiverPartyReference, receiverAccountReference?)?, paymentAmount, paymentDate?, paymentType?
</exchangedCurrency1>
Content model elements (7):
payerAccountReference,
payerPartyReference,
paymentAmount (defined in Payment complexType),
paymentDate (defined in Payment complexType),
paymentType,
receiverAccountReference,
receiverPartyReference
Included in content model of elements (3):
farLeg, fxSingleLeg, nearLeg
Annotation
This is the first of the two currency flows that define a single leg of a standard foreign exchange transaction.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="exchangedCurrency1" type="Payment"/>
