complexType "ExercisePeriod"

Namespace:	http://www.fpml.org/FpML-5/pretrade
Content:	complex, 1 attribute, 2 elements
Defined:	globally in fpml-ird-5-13.xsd; see XML source
Includes:	definitions of 1 attribute, 2 elements
Used:	at 1 location

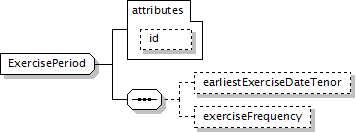

Component Diagram

XML Representation Summary

<...

xsd:ID

Content:

earliestExerciseDateTenor?, exerciseFrequency?

</...>

Content Model Elements (2):

earliestExerciseDateTenor, exerciseFrequency

All Direct / Indirect Based Elements (1):

optionalEarlyTerminationParameters

Known Usage Locations

As direct type of elements (1):

optionalEarlyTerminationParameters

Annotation

This defines the time interval to the start of the exercise period, i.e. the earliest exercise date, and the frequency of subsequent exercise dates (if any). - For use with pre-trade Credit Limit Check messages.

XML Source (w/o annotations (3); see within schema source)

<xsd:complexType name="ExercisePeriod">

<xsd:sequence>

<xsd:element minOccurs="0" name="earliestExerciseDateTenor" type="Period"/>

<xsd:element minOccurs="0" name="exerciseFrequency" type="Period"/>

</xsd:sequence>

<xsd:attribute name="id" type="xsd:ID"/>

</xsd:complexType>

Attribute Detail (all declarations; defined within this component only; 1/1)

Type:	xsd:ID, predefined
Use:	optional

XML Source (see within schema source)

<xsd:attribute name="id" type="xsd:ID"/>

Content Element Detail (all declarations; defined within this component only; 2/2)

earliestExerciseDateTenor

Type:

Period, complex content

The time interval to the first (and possibly only) exercise date in the exercise period.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="earliestExerciseDateTenor" type="Period"/>

exerciseFrequency

Type:

Period, complex content

The frequency of subsequent exercise dates in the exercise period following the earliest exercise date. An interval of 1 day should be used to indicate an American style exercise period.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="exerciseFrequency" type="Period"/>
