element <varyingNotionalFixingDates> (local)

Namespace:	http://www.fpml.org/FpML-5/pretrade
Type:	RelativeDateOffset
Content:	complex, 1 attribute, 7 elements
Defined:	locally within FxLinkedNotionalSchedule complexType in fpml-ird-5-13.xsd; see XML source

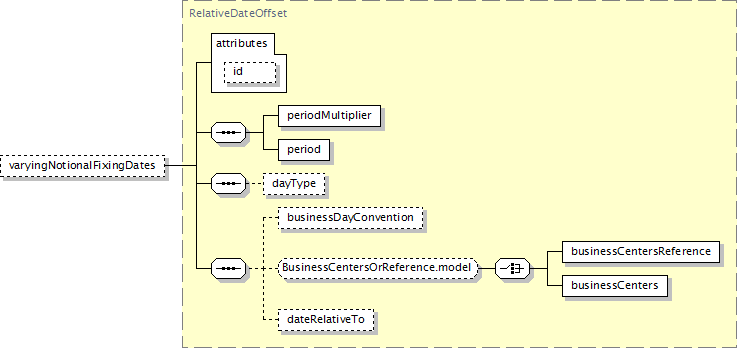

Component Diagram

XML Representation Summary

<varyingNotionalFixingDates

xsd:ID

Content:

periodMultiplier, period, dayType?, businessDayConvention?, (businessCentersReference | businessCenters)?, dateRelativeTo?

</varyingNotionalFixingDates>

Content model elements (7):

businessCenters (defined in BusinessCentersOrReference.model group),

businessCentersReference,

businessDayConvention (defined in RelativeDateOffset complexType),

dateRelativeTo,

dayType (defined in Offset complexType),

period (defined in Period complexType),

periodMultiplier (defined in Period complexType)

Included in content model of elements (1):

fxLinkedNotionalSchedule

Annotation

The dates on which spot currency exchange rates are observed for purposes of determining the varying notional currency amount that will apply to a calculation period.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="varyingNotionalFixingDates" type="RelativeDateOffset"/>
