element <fxLinkedNotionalSchedule> (local)

Namespace:	http://www.fpml.org/FpML-5/pretrade
Type:	FxLinkedNotionalSchedule
Content:	complex, 6 elements
Defined:	locally within Calculation complexType in fpml-ird-5-13.xsd; see XML source

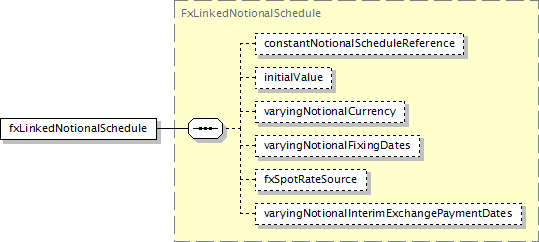

Component Diagram

XML Representation Summary

Content:

constantNotionalScheduleReference?, initialValue?, varyingNotionalCurrency?, varyingNotionalFixingDates?, fxSpotRateSource?, varyingNotionalInterimExchangePaymentDates?

</fxLinkedNotionalSchedule>

Content model elements (6):

constantNotionalScheduleReference,

fxSpotRateSource (in fxLinkedNotionalSchedule),

initialValue (in fxLinkedNotionalSchedule),

varyingNotionalCurrency,

varyingNotionalFixingDates,

varyingNotionalInterimExchangePaymentDates

Included in content model of elements (1):

calculation

Annotation

A notional amount schedule where each notional that applied to a calculation period is calculated with reference to a notional amount or notional amount schedule in a different currency by means of a spot currency exchange rate which is normally observed at the beginning of each period. - For use with pre-trade Credit Limit Check messages.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="fxLinkedNotionalSchedule" type="FxLinkedNotionalSchedule"/>
