complexType "OrderRoles"
Namespace:
http://www.fpml.org/FpML-5/pretrade
Content:
complex, 15 elements
Defined:
globally in fpml-pretrade-processes-5-13.xsd; see XML source
Includes:
definitions of 15 elements
Used:
at 1 location

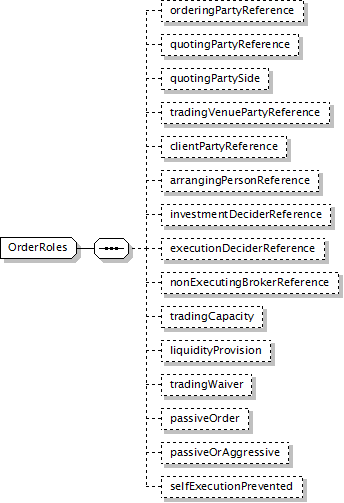

Component Diagram
XML Representation Summary
<...>

Content:
orderingPartyReference?, quotingPartyReference?, quotingPartySide?, tradingVenuePartyReference?, clientPartyReference?, arrangingPersonReference?, investmentDeciderReference?, executionDeciderReference?, nonExecutingBrokerReference?, tradingCapacity?, liquidityProvision?, tradingWaiver?, passiveOrder?, passiveOrAggressive?, selfExecutionPrevented?
</...>
Content Model Elements (15):
arrangingPersonReference,
clientPartyReference,
executionDeciderReference,
investmentDeciderReference,
liquidityProvision,
nonExecutingBrokerReference,
orderingPartyReference,
passiveOrAggressive,
passiveOrder,
quotingPartyReference,
quotingPartySide,
selfExecutionPrevented,
tradingCapacity,
tradingVenuePartyReference,
tradingWaiver (in roles)
All Direct / Indirect Based Elements (1):
roles
Known Usage Locations
XML Source (see within schema source)
<xsd:complexType name="OrderRoles">
<xsd:sequence>
<xsd:element minOccurs="0" name="orderingPartyReference" type="PartyReference"/>
<xsd:element minOccurs="0" name="quotingPartyReference" type="PartyReference"/>
<xsd:element minOccurs="0" name="quotingPartySide" type="BuySellEnum"/>
<xsd:element minOccurs="0" name="tradingVenuePartyReference" type="PartyReference"/>
<xsd:element minOccurs="0" name="clientPartyReference" type="PartyReference"/>
<xsd:element minOccurs="0" name="arrangingPersonReference" type="PersonReference"/>
<xsd:element minOccurs="0" name="investmentDeciderReference" type="PersonReference"/>
<xsd:element minOccurs="0" name="executionDeciderReference" type="PersonReference"/>
<xsd:element minOccurs="0" name="nonExecutingBrokerReference" type="PartyReference"/>
<xsd:element minOccurs="0" name="tradingCapacity" type="String"/>
<xsd:element minOccurs="0" name="liquidityProvision" type="xsd:boolean"/>
<xsd:element minOccurs="0" name="tradingWaiver" type="xsd:boolean"/>
<xsd:element minOccurs="0" name="passiveOrder" type="xsd:boolean"/>
<xsd:element minOccurs="0" name="passiveOrAggressive" type="PassiveOrAggressiveEnum"/>
<xsd:element minOccurs="0" name="selfExecutionPrevented" type="xsd:boolean"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 15/15)
arrangingPersonReference
Type:
PersonReference, empty content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="arrangingPersonReference" type="PersonReference"/>
clientPartyReference
Type:
PartyReference, empty content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="clientPartyReference" type="PartyReference"/>
executionDeciderReference
Type:
PersonReference, empty content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="executionDeciderReference" type="PersonReference"/>
investmentDeciderReference
Type:
PersonReference, empty content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="investmentDeciderReference" type="PersonReference"/>
liquidityProvision
Type:
xsd:boolean, predefined, simple content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="liquidityProvision" type="xsd:boolean"/>
nonExecutingBrokerReference
Type:
PartyReference, empty content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="nonExecutingBrokerReference" type="PartyReference"/>
orderingPartyReference
Type:
PartyReference, empty content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="orderingPartyReference" type="PartyReference"/>
passiveOrAggressive
Type:
PassiveOrAggressiveEnum, simple content
Simple Content
enumeration of xsd:token
Enumeration:
"Passive"
 -
the order was already resting on the order book and providing liquidity.
See:  http://www.FpML.org
"Aggressive"
 -
the order initiated the trade and thus took liquidity.
See:  http://www.FpML.org
XML Source (see within schema source)
<xsd:element minOccurs="0" name="passiveOrAggressive" type="PassiveOrAggressiveEnum"/>
passiveOrder
Type:
xsd:boolean, predefined, simple content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="passiveOrder" type="xsd:boolean"/>
quotingPartyReference
Type:
PartyReference, empty content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="quotingPartyReference" type="PartyReference"/>
quotingPartySide
Type:
BuySellEnum, simple content
Simple Content
enumeration of xsd:token
Enumeration:
"Buyer"
 -
Indicates the buyer.
See:  http://www.FpML.org
"Seller"
 -
Indicates the seller.
See:  http://www.FpML.org
XML Source (see within schema source)
<xsd:element minOccurs="0" name="quotingPartySide" type="BuySellEnum"/>
selfExecutionPrevented
Type:
xsd:boolean, predefined, simple content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="selfExecutionPrevented" type="xsd:boolean"/>
tradingCapacity
Type:
String, simple content
Simple Content
xsd:string
maxLength:
255
XML Source (see within schema source)
<xsd:element minOccurs="0" name="tradingCapacity" type="String"/>
tradingVenuePartyReference
Type:
PartyReference, empty content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="tradingVenuePartyReference" type="PartyReference"/>
tradingWaiver
Type:
xsd:boolean, predefined, simple content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="tradingWaiver" type="xsd:boolean"/>
