element <productDefinitionsReport> (global)
Namespace:
http://www.fpml.org/FpML-5/pretrade
Type:
ProductDefinitionsReport
Content:
complex, 3 attributes, 12 elements
Defined:
globally in fpml-pretrade-processes-5-13.xsd; see XML source
Used:
never

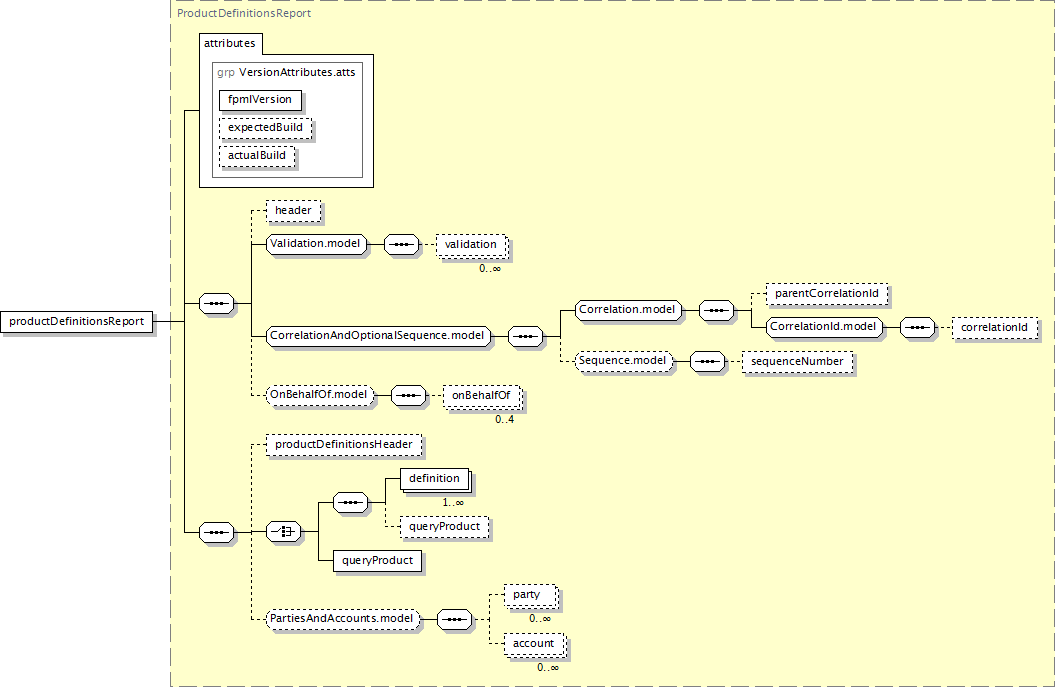

Component Diagram
XML Representation Summary
<productDefinitionsReport

fpmlVersion
 =
xsd:token
expectedBuild
 =
xsd:positiveInteger
actualBuild
 =
"4"

>

Content:
header?, validation*, parentCorrelationId?, correlationId?, sequenceNumber??, onBehalfOf[0..4]?, productDefinitionsHeader?, ((definition+, queryProduct?) | queryProduct), (party*, account*)?
</productDefinitionsReport>
Content model elements (12):
account,
correlationId,
definition (in productDefinitionsReport),
header (defined in ResponseMessage complexType),
onBehalfOf (defined in OnBehalfOf.model group),
parentCorrelationId,
party,
productDefinitionsHeader (in productDefinitionsReport),
queryProduct (in productDefinitionsReport),
queryProduct (in productDefinitionsReport),
sequenceNumber (defined in Sequence.model group),
validation
Annotation
The primary use case for this message is for an execution venue to report all, or a subset of, product definitions that it supports to its customer.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="productDefinitionsReport" type="ProductDefinitionsReport"/>
