complexType "AdjustableOrRelativeDate"
Namespace:
http://www.fpml.org/FpML-5/pretrade
Content:
complex, 1 attribute, 2 elements
Defined:
globally in fpml-shared-5-13.xsd; see XML source
Includes:
definitions of 1 attribute, 2 elements
Used:
at 10 locations

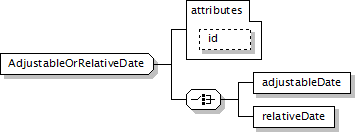

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
adjustableDate | relativeDate
</...>
Content Model Elements (2):
adjustableDate,
relativeDate (defined in AdjustableOrRelativeDate complexType)
All Direct / Indirect Based Elements (10):
commencementDate (defined in FxDigitalAmericanExercise complexType),
commencementDate (in americanExercise),
effectiveDate (in fxDigitalOption),
effectiveDate (in fxOption),
expirationDate (defined in ExchangeTradedContract complexType),
expirationDate (in americanExercise),
expirationDate (in europeanExercise),
paymentDate (defined in PaymentBaseExtended complexType),
paymentDate (in initialFee),
paymentDate (in paymentDetail)
Known Usage Locations
Annotation
A type giving the choice between defining a date as an explicit date together with applicable adjustments or as relative to some other (anchor) date.
XML Source (w/o annotations (3); see within schema source)
<xsd:complexType name="AdjustableOrRelativeDate">
<xsd:choice>
<xsd:element name="adjustableDate" type="AdjustableDate"/>
<xsd:element name="relativeDate" type="RelativeDateOffset"/>
</xsd:choice>
<xsd:attribute name="id" type="xsd:ID"/>
</xsd:complexType>
Attribute Detail (all declarations; defined within this component only; 1/1)
id
Type:
xsd:ID, predefined
Use:
optional
XML Source (see within schema source)
<xsd:attribute name="id" type="xsd:ID"/>
Content Element Detail (all declarations; defined within this component only; 2/2)
adjustableDate
Type:
AdjustableDate, complex content
A date that is subject to adjustment if it would otherwise fall on a day that is not a business day in the specified business centers, together with the convention for adjusting the date.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="adjustableDate" type="AdjustableDate"/>
relativeDate
Type:
RelativeDateOffset, complex content
A date specified as an offset to another date (the anchor date).
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="relativeDate" type="RelativeDateOffset"/>
