complexType "RelativeDates"

Namespace:	http://www.fpml.org/FpML-5/pretrade
Content:	complex, 1 attribute, 9 elements
Defined:	globally in fpml-shared-5-13.xsd; see XML source
Includes:	definitions of 2 elements
Used:	at 1 location

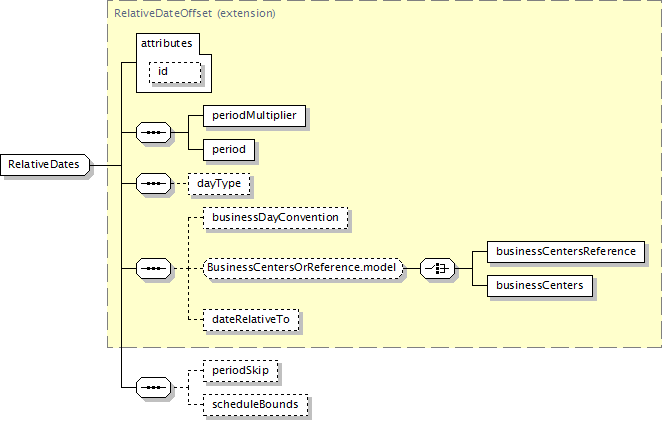

Component Diagram

XML Representation Summary

<...

xsd:ID

Content:

periodMultiplier, period, dayType?, businessDayConvention?, (businessCentersReference | businessCenters)?, dateRelativeTo?, periodSkip?, scheduleBounds?

</...>

Content Model Elements (9):

businessCenters (defined in BusinessCentersOrReference.model group),

businessCentersReference,

businessDayConvention (defined in RelativeDateOffset complexType),

dateRelativeTo,

dayType (defined in Offset complexType),

period (defined in Period complexType),

periodMultiplier (defined in Period complexType),

periodSkip,

scheduleBounds

All Direct / Indirect Based Elements (1):

relativeDates

Known Usage Locations

As direct type of elements (1):

relativeDates

Annotation

A type describing a set of dates defined as relative to another set of dates.

Type Definition Detail

Type Derivation Tree

Period (extension)

Offset (extension)

RelativeDateOffset (extension)

RelativeDates

XML Source (w/o annotations (3); see within schema source)

<xsd:complexType name="RelativeDates">

<xsd:complexContent>

<xsd:extension base="RelativeDateOffset">

<xsd:sequence>

<xsd:element minOccurs="0" name="periodSkip" type="xsd:positiveInteger"/>

<xsd:element minOccurs="0" name="scheduleBounds" type="DateRange"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 2/9)

periodSkip

Type:

xsd:positiveInteger, predefined, simple content

The number of periods in the referenced date schedule that are between each date in the relative date schedule. Thus a skip of 2 would mean that dates are relative to every second date in the referenced schedule. If present this should have a value greater than 1.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="periodSkip" type="xsd:positiveInteger"/>

scheduleBounds

Type:

DateRange, complex content

The first and last dates of a schedule. This can be used to restrict the range of values in a reference series of dates.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="scheduleBounds" type="DateRange"/>
