group "FloatingRate.model"
Namespace:
Content:
Defined:
Includes:
definitions of 3 elements
Used:

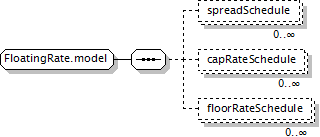

Component Diagram
Complex Content Model
Content Model Elements (3):
Known Usage Locations
Annotation
Elements representing the rate treatment and conditioning parameters that can be applied to a floating rate, such as spreads, multipliers, rate treatments, rate rounding, etc.
XML Source (w/o annotations (4); see within schema source)
<xsd:group name="FloatingRate.model">
<xsd:sequence>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="spreadSchedule" type="SpreadSchedule"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="capRateSchedule" type="StrikeSchedule"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="floorRateSchedule" type="StrikeSchedule"/>
</xsd:sequence>
</xsd:group>
Content Element Detail (all declarations; defined within this component only; 3/3)
capRateSchedule
Type:
StrikeSchedule, complex content
The cap rate or cap rate schedule, if any, which applies to the floating rate. The cap rate (strike) is only required where the floating rate on a swap stream is capped at a certain level. A cap rate schedule is expressed as explicit cap rates and dates and the step dates may be subject to adjustment in accordance with any adjustments specified in calculationPeriodDatesAdjustments. The cap rate is assumed to be exclusive of any spread and is a per annum rate, expressed as a decimal. A cap rate of 5% would be represented as 0.05.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="capRateSchedule" type="StrikeSchedule"/>

floorRateSchedule
Type:
StrikeSchedule, complex content
The floor rate or floor rate schedule, if any, which applies to the floating rate. The floor rate (strike) is only required where the floating rate on a swap stream is floored at a certain strike level. A floor rate schedule is expressed as explicit floor rates and dates and the step dates may be subject to adjustment in accordance with any adjustments specified in calculationPeriodDatesAdjustments. The floor rate is assumed to be exclusive of any spread and is a per annum rate, expressed as a decimal. A floor rate of 5% would be represented as 0.05.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="floorRateSchedule" type="StrikeSchedule"/>

spreadSchedule
Type:
SpreadSchedule, complex content
The ISDA Spread or a Spread schedule expressed as explicit spreads and dates. In the case of a schedule, the step dates may be subject to adjustment in accordance with any adjustments specified in calculationPeriodDatesAdjustments. The spread is a per annum rate, expressed as a decimal. For purposes of determining a calculation period amount, if positive the spread will be added to the floating rate and if negative the spread will be subtracted from the floating rate. A positive 10 basis point (0.1%) spread would be represented as 0.001.
XML Source (w/o annotations (1); see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="spreadSchedule" type="SpreadSchedule"/>
