complexType "DisputeNotification"
Namespace:
http://www.fpml.org/FpML-5/reporting
Content:
complex, 3 attributes, 16 elements
Defined:
globally in fpml-collateral-processes-5-13.xsd; see XML source
Includes:
definitions of 5 elements
Used:
at 1 location

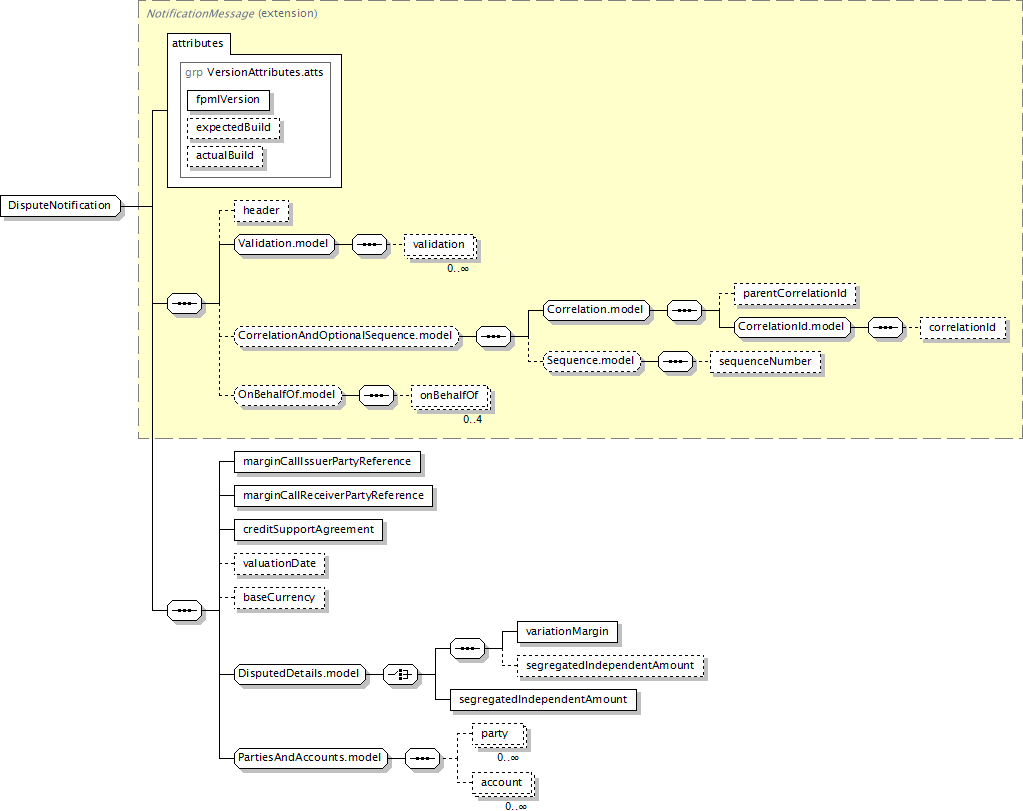

Component Diagram
XML Representation Summary
<...

fpmlVersion
 =
xsd:token
expectedBuild
 =
xsd:positiveInteger
actualBuild
 =
"4"

>

Content:
header?, validation*, (parentCorrelationId?, correlationId?, sequenceNumber??)?, onBehalfOf[0..4]?, marginCallIssuerPartyReference, marginCallReceiverPartyReference, creditSupportAgreement, valuationDate?, baseCurrency?, ((variationMargin, segregatedIndependentAmount?) | segregatedIndependentAmount), party*, account*
</...>
Content Model Elements (16):
account,
baseCurrency (in disputeNotification),
correlationId,
creditSupportAgreement (in disputeNotification),
header (defined in NotificationMessage complexType),
marginCallIssuerPartyReference (in disputeNotification),
marginCallReceiverPartyReference (in disputeNotification),
onBehalfOf (defined in OnBehalfOf.model group),
parentCorrelationId,
party (defined in PartiesAndAccounts.model group),
segregatedIndependentAmount (in disputeNotification),
segregatedIndependentAmount (in disputeNotification),
sequenceNumber (defined in Sequence.model group),
validation,
valuationDate (in disputeNotification),
variationMargin (in disputeNotification)
All Direct / Indirect Based Elements (1):
disputeNotification
Known Usage Locations
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      NotificationMessage (extension)
          DisputeNotification
XML Source (w/o annotations (5); see within schema source)
<xsd:complexType name="DisputeNotification">
<xsd:complexContent>
<xsd:extension base="NotificationMessage">
<xsd:sequence>
<xsd:element name="marginCallIssuerPartyReference" type="PartyReference"/>
<xsd:element name="creditSupportAgreement" type="CreditSupportAgreement"/>
<xsd:element minOccurs="0" name="valuationDate" type="xsd:date"/>
<xsd:element minOccurs="0" name="baseCurrency" type="Currency"/>
<xsd:group ref="DisputedDetails.model"/>
<xsd:group ref="PartiesAndAccounts.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 5/16)
baseCurrency
Type:
Currency, simple content
Denomination currency as specified in the margin agreement.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
0
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="baseCurrency" type="Currency"/>
creditSupportAgreement
Type:
CreditSupportAgreement, complex content
References the legal agreement.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="creditSupportAgreement" type="CreditSupportAgreement"/>
marginCallIssuerPartyReference
Type:
PartyReference, empty content
The party receiving the margin call.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="marginCallIssuerPartyReference" type="PartyReference"/>
marginCallReceiverPartyReference
Type:
PartyReference, empty content
The party receiving the margin call.
XML Source (w/o annotations (1); see within schema source)
valuationDate
Type:
xsd:date, predefined, simple content
Close of business date the local counterparty is valuing and issuing the margin call.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="valuationDate" type="xsd:date"/>
