complexType "InterestStatement"
Namespace:
http://www.fpml.org/FpML-5/reporting
Content:
complex, 3 attributes, 13 elements
Defined:
globally in fpml-collateral-processes-5-13.xsd; see XML source
Includes:
definitions of 5 elements
Used:
at 1 location

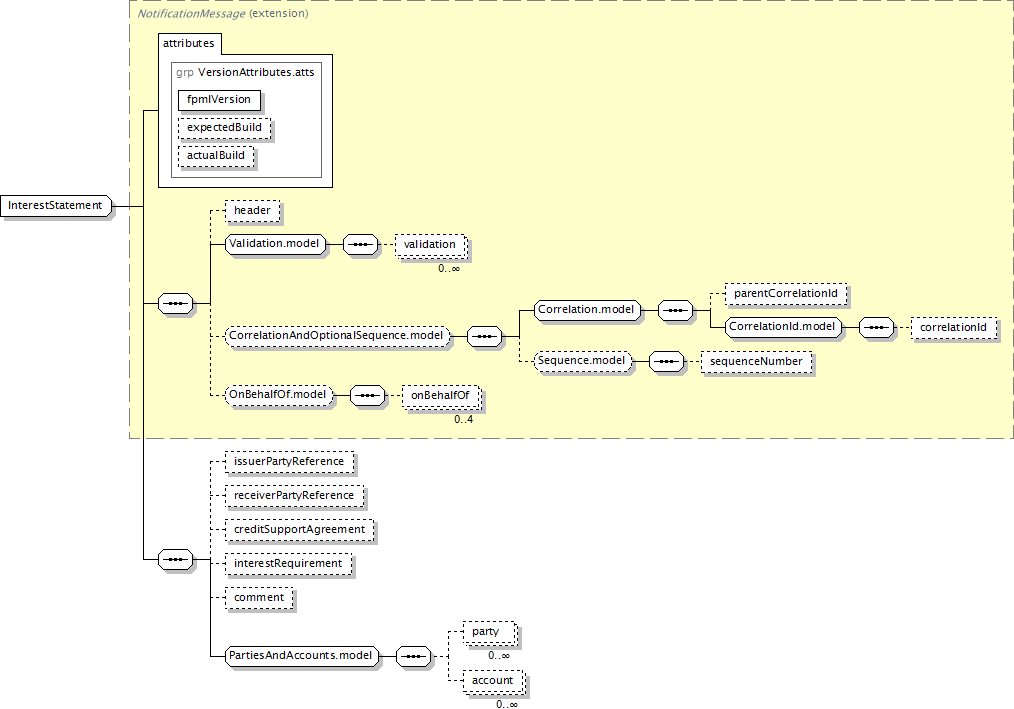

Component Diagram
XML Representation Summary
<...

fpmlVersion
 =
xsd:token
expectedBuild
 =
xsd:positiveInteger
actualBuild
 =
"4"

>

Content:
header?, validation*, (parentCorrelationId?, correlationId?, sequenceNumber??)?, onBehalfOf[0..4]?, issuerPartyReference?, receiverPartyReference?, creditSupportAgreement?, interestRequirement?, comment?, party*, account*
</...>
Content Model Elements (13):
account,
comment (in interestStatement),
correlationId,
creditSupportAgreement (in interestStatement),
header (defined in NotificationMessage complexType),
interestRequirement (in interestStatement),
issuerPartyReference (in interestStatement),
onBehalfOf (defined in OnBehalfOf.model group),
parentCorrelationId,
party (defined in PartiesAndAccounts.model group),
receiverPartyReference (in interestStatement),
sequenceNumber (defined in Sequence.model group),
validation
All Direct / Indirect Based Elements (1):
interestStatement
Known Usage Locations
Annotation
IN1 Interest Notification Message Definition.
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      NotificationMessage (extension)
          InterestStatement
XML Source (w/o annotations (4); see within schema source)
<xsd:complexType name="InterestStatement">
<xsd:complexContent>
<xsd:extension base="NotificationMessage">
<xsd:sequence>
<xsd:element minOccurs="0" name="issuerPartyReference" type="PartyReference"/>
<xsd:element minOccurs="0" name="receiverPartyReference" type="PartyReference"/>
<xsd:element minOccurs="0" name="creditSupportAgreement" type="CreditSupportAgreement"/>
<xsd:element minOccurs="0" name="interestRequirement" type="InterestStatementRequirement"/>
<!-- the content model is essentially the same as for the interest notification (IN1) except that NO treatment is needed for the Interest Statement -->
<xsd:element minOccurs="0" name="comment" type="String"/>
<xsd:group ref="PartiesAndAccounts.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 5/13)
comment
Type:
String, simple content
Simple Content
xsd:string
maxLength:
255
XML Source (see within schema source)
<xsd:element minOccurs="0" name="comment" type="String"/>
creditSupportAgreement
Type:
CreditSupportAgreement, complex content
The agreement executed between the parties and intended to govern collateral arrangement for all OTC derivatives transactions between those parties.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="creditSupportAgreement" type="CreditSupportAgreement"/>
interestRequirement
Type:
InterestStatementRequirement, complex content
XML Source (see within schema source)
<xsd:element minOccurs="0" name="interestRequirement" type="InterestStatementRequirement"/>
issuerPartyReference
Type:
PartyReference, empty content
The party issuing the interest statement.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="issuerPartyReference" type="PartyReference"/>
receiverPartyReference
Type:
PartyReference, empty content
The party receiving the interest statement.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="receiverPartyReference" type="PartyReference"/>
