element <termDeposit> (global)
Namespace:
http://www.fpml.org/FpML-5/reporting
Type:
TermDeposit
Content:
complex, 1 attribute, 20 elements
Subst.Gr:
substitutes for product
Defined:
globally in fpml-fx-5-13.xsd; see XML source
Used:
never

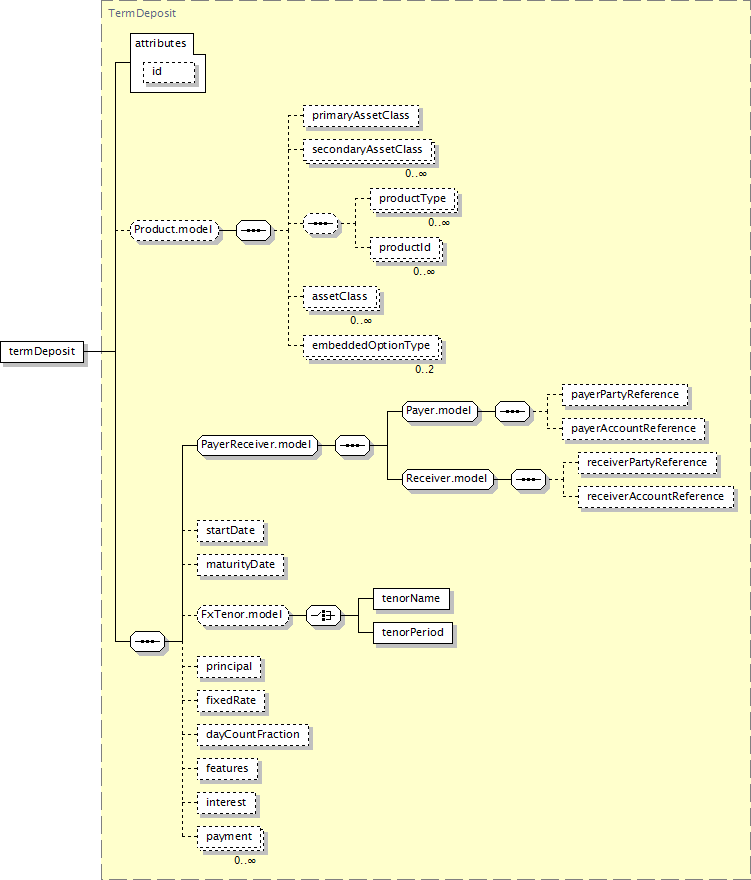

Component Diagram
XML Representation Summary
<termDeposit

id
 =
xsd:ID

>

Content:
(primaryAssetClass?, secondaryAssetClass*, (productType*, productId*)?, assetClass*, embeddedOptionType[0..2])?, payerPartyReference?, payerAccountReference?, receiverPartyReference?, receiverAccountReference?, startDate?, maturityDate?, (tenorName | tenorPeriod)?, principal?, fixedRate?, dayCountFraction?, features?, interest?, payment*
</termDeposit>
Content model elements (20):
assetClass (defined in Product.model group),
dayCountFraction (in termDeposit),
embeddedOptionType,
features (in termDeposit),
fixedRate (in termDeposit),
interest (in termDeposit),
maturityDate,
payerAccountReference,
payerPartyReference (defined in Payer.model group),
payment (in termDeposit),
primaryAssetClass (defined in Product.model group),
principal (in termDeposit),
productId (defined in Product.model group),
productType (defined in Product.model group),
receiverAccountReference,
receiverPartyReference (defined in Receiver.model group),
secondaryAssetClass (defined in Product.model group),
startDate (in termDeposit),
tenorName,
tenorPeriod (defined in FxTenor.model group)
May be included in elements by substitutions (21):
feeTrade,
newTrade,
oldTrade (in change),
oldTrade (in novation),
originalTrade (defined in TradeChangeBase complexType),
originalTrade (in optionExercise),
originalTrade (in optionExpiry defined in Events.model group),
physicalSettlement (in optionExercise),
resultingTrade (defined in TradeChangeBase complexType),
resultingTrade (in physicalSettlement in optionExercise),
strategy,
trade (defined in DataDocument complexType),
trade (defined in Events.model group),
trade (defined in PositionConstituent complexType),
trade (defined in TradePackage complexType),
trade (defined in TradeValuationItem complexType),
trade (in affectedTransactions),
trade (in amendment),
trade (in change),
trade (in clearingStatusItem),
trade (in withdrawal)
Annotation
A term deposit product definition.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="termDeposit" substitutionGroup="product" type="TermDeposit"/>
