complexType "CancelTradeCashflows"
Namespace:
http://www.fpml.org/FpML-5/reporting
Content:
complex, 3 attributes, 13 elements
Defined:
globally in fpml-reconciliation-5-13.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

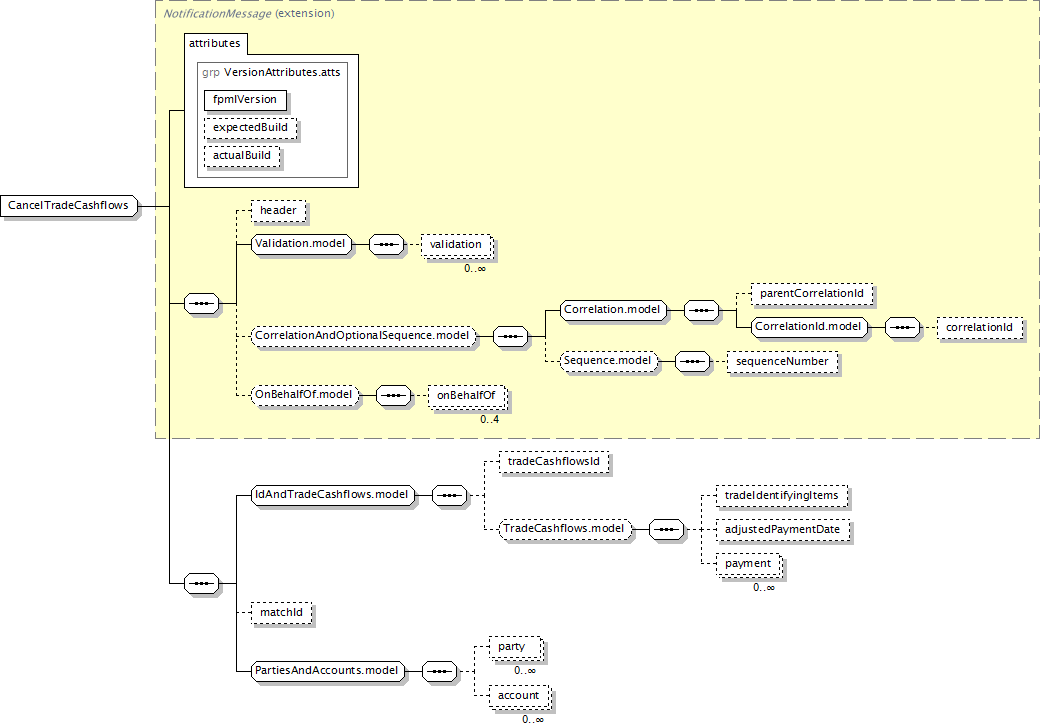

Component Diagram
XML Representation Summary
<...

fpmlVersion
 =
xsd:token
expectedBuild
 =
xsd:positiveInteger
actualBuild
 =
"4"

>

Content:
header?, validation*, (parentCorrelationId?, correlationId?, sequenceNumber??)?, onBehalfOf[0..4]?, tradeCashflowsId?, (tradeIdentifyingItems?, adjustedPaymentDate?, payment*)?, matchId?, party*, account*
</...>
Content Model Elements (13):
account,
adjustedPaymentDate (defined in TradeCashflows.model group),
correlationId,
header (defined in NotificationMessage complexType),
matchId (in cancelTradeCashflows),
onBehalfOf (defined in OnBehalfOf.model group),
parentCorrelationId,
party (defined in PartiesAndAccounts.model group),
payment (defined in TradeCashflows.model group),
sequenceNumber (defined in Sequence.model group),
tradeCashflowsId (defined in IdAndTradeCashflows.model group),
tradeIdentifyingItems (defined in TradeCashflows.model group),
validation
All Direct / Indirect Based Elements (1):
cancelTradeCashflows
Known Usage Locations
Annotation
Message for cancellation of payments to be reconciled. A message sent to indicate that previously asserted TradeCashFlows are no longer in effect. For example, this may be caused by a trade's being terminated or assigned after a TradeCashflowsAsserted message has been sent but before the payment date.
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      NotificationMessage (extension)
          CancelTradeCashflows
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="CancelTradeCashflows">
<xsd:complexContent>
<xsd:extension base="NotificationMessage">
<xsd:sequence>
<xsd:group ref="IdAndTradeCashflows.model"/>
<xsd:element minOccurs="0" name="matchId" type="MatchId"/>
<xsd:group ref="PartiesAndAccounts.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/13)
matchId
Type:
MatchId, simple content
A unique identifier assigned by matching service to each set of matched cashflows.
Simple Content
xsd:normalizedString
maxLength:
255
minLength:
1
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="matchId" type="MatchId"/>
