complexType "PositionsMatchResults"
Namespace:
http://www.fpml.org/FpML-5/reporting
Content:
complex, 3 attributes, 11 elements
Defined:
globally in fpml-reconciliation-5-13.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 1 location

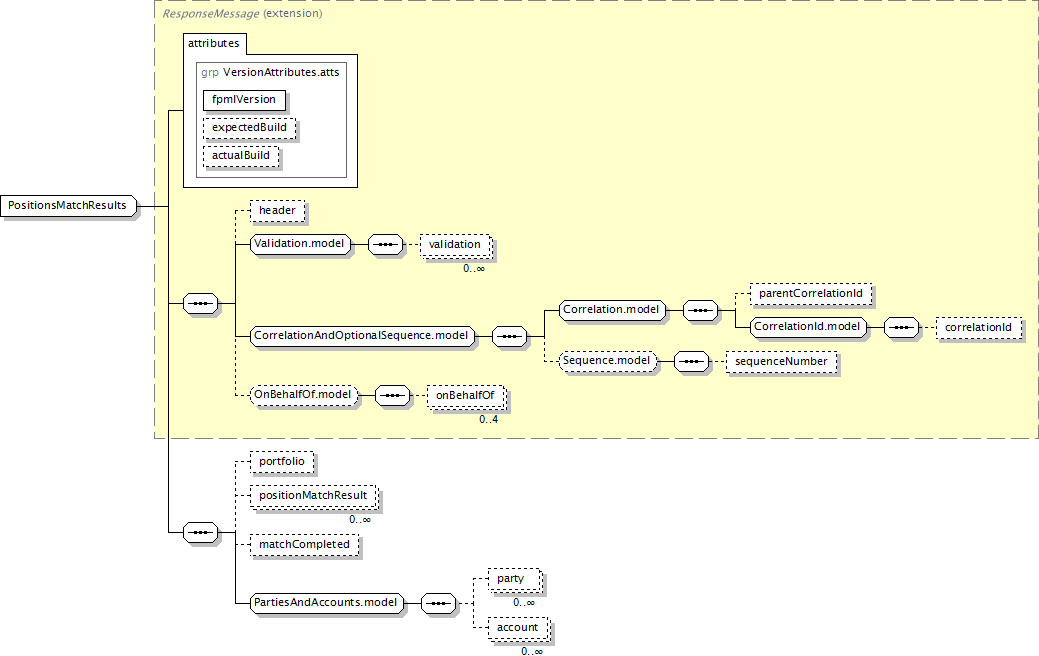

Component Diagram
XML Representation Summary
<...

fpmlVersion
 =
xsd:token
expectedBuild
 =
xsd:positiveInteger
actualBuild
 =
"4"

>

Content:
header?, validation*, parentCorrelationId?, correlationId?, sequenceNumber??, onBehalfOf[0..4]?, portfolio?, positionMatchResult*, matchCompleted?, party*, account*
</...>
Content Model Elements (11):
account,
correlationId,
header (defined in ResponseMessage complexType),
matchCompleted,
onBehalfOf (defined in OnBehalfOf.model group),
parentCorrelationId,
party (defined in PartiesAndAccounts.model group),
portfolio (in positionsMatchResults),
positionMatchResult,
sequenceNumber (defined in Sequence.model group),
validation
All Direct / Indirect Based Elements (1):
positionsMatchResults
Known Usage Locations
Annotation
Reports the results of the portfolio reconciliation operation. It states the matching results for multiple positions, supporting the match, mismatched, unmatched and alleged position results.
Type Definition Detail
Type Derivation Tree
Document (extension)
  Message (extension)
      ResponseMessage (extension)
          PositionsMatchResults
XML Source (w/o annotations (3); see within schema source)
<xsd:complexType name="PositionsMatchResults">
<xsd:complexContent>
<xsd:extension base="ResponseMessage">
<xsd:sequence>
<xsd:element minOccurs="0" name="portfolio" type="PortfolioDefinition"/>
<xsd:element maxOccurs="unbounded" minOccurs="0" name="positionMatchResult" type="PositionMatchResult"/>
<xsd:element minOccurs="0" name="matchCompleted" type="xsd:boolean"/>
<xsd:group ref="PartiesAndAccounts.model"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 3/11)
matchCompleted
Type:
xsd:boolean, predefined, simple content
Flag indicating whether the Matching Service has finished sending all matching results.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="matchCompleted" type="xsd:boolean"/>
portfolio
Type:
PortfolioDefinition, complex content
Contains the portfolio definition.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="portfolio" type="PortfolioDefinition"/>
positionMatchResult
Type:
PositionMatchResult, complex content
XML Source (see within schema source)
<xsd:element maxOccurs="unbounded" minOccurs="0" name="positionMatchResult" type="PositionMatchResult"/>
