complexType "PeriodicPayment"

Namespace:	http://www.fpml.org/FpML-5/transparency
Content:	complex, 1 attribute, 4 elements
Defined:	globally in fpml-cd-5-13.xsd; see XML source
Includes:	definitions of 4 elements
Used:	at 2 locations

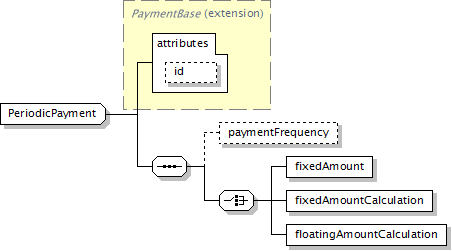

Component Diagram

XML Representation Summary

<...

xsd:ID

Content:

paymentFrequency?, (fixedAmount | fixedAmountCalculation | floatingAmountCalculation)

</...>

Content Model Elements (4):

fixedAmount (defined in PeriodicPayment complexType),

fixedAmountCalculation,

floatingAmountCalculation,

paymentFrequency (defined in PeriodicPayment complexType)

All Direct / Indirect Based Elements (2):

periodicPayment (defined in FeeLeg complexType),

periodicPayment (defined in FeeLeg complexType)

Known Usage Locations

As direct type of elements (2):

periodicPayment (defined in FeeLeg complexType),

periodicPayment (defined in FeeLeg complexType)

Type Definition Detail

Type Derivation Tree

PaymentBase (extension)

PeriodicPayment

XML Source (w/o annotations (3); see within schema source)

<xsd:complexType name="PeriodicPayment">

<xsd:complexContent>

<xsd:extension base="PaymentBase">

<xsd:sequence>

<xsd:element minOccurs="0" name="paymentFrequency" type="Period"/>

<xsd:choice>

<xsd:element name="fixedAmount" type="Money"/>

<xsd:element name="fixedAmountCalculation" type="FixedAmountCalculation"/>

<xsd:element name="floatingAmountCalculation" type="FloatingAmountCalculation"/>

</xsd:choice>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 4/4)

fixedAmount

Type:

Money, complex content

A fixed payment amount. ISDA 2003 Term: Fixed Amount

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="fixedAmount" type="Money"/>

fixedAmountCalculation

Type:

FixedAmountCalculation, complex content

This element contains all the terms relevant to calculating a fixed amount where the fixed amount is calculated by reference to a per annum fixed rate. There is no corresponding ISDA 2003 Term. The equivalent is Sec 5.1 "Calculation of Fixed Amount" but this in itself is not a defined Term.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="fixedAmountCalculation" type="FixedAmountCalculation"/>

floatingAmountCalculation

Type:

FloatingAmountCalculation, complex content

XML Source (see within schema source)

<xsd:element name="floatingAmountCalculation" type="FloatingAmountCalculation"/>

paymentFrequency

Type:

Period, complex content

The time interval between regular fixed rate payer payment dates.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="paymentFrequency" type="Period"/>
