complexType "CommodityAmericanExercise"

Namespace:	http://www.fpml.org/FpML-5/transparency
Content:	complex, 1 attribute, 2 elements
Defined:	globally in fpml-com-5-13.xsd; see XML source
Includes:	definitions of 2 elements
Used:	at 3 locations

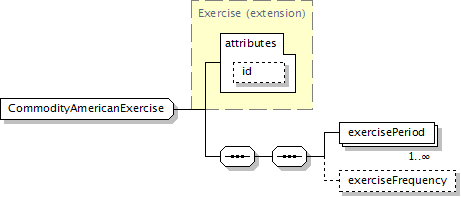

Component Diagram

XML Representation Summary

<...

xsd:ID

Content:

</...>

Content Model Elements (2):

All Direct / Indirect Based Elements (3):

Known Usage Locations

Annotation

A type for defining exercise procedures associated with an American style exercise of a commodity option.

Type Definition Detail

Type Derivation Tree

Exercise (extension)

CommodityAmericanExercise

XML Source (w/o annotations (4); see within schema source)

<xsd:complexContent>

<xsd:extension base="Exercise">

<xsd:sequence>

<xsd:element maxOccurs="unbounded" name="exercisePeriod" type="CommodityExercisePeriods"/>

<xsd:element minOccurs="0" name="exerciseFrequency" type="Frequency"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 2/2)

Type:

Frequency, complex content

The exercise frequency for the strip.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="exerciseFrequency" type="Frequency"/>

Type:

Describes the American exercise periods.

XML Source (w/o annotations (1); see within schema source)

<xsd:element maxOccurs="unbounded" name="exercisePeriod" type="CommodityExercisePeriods"/>
