element <commodityOption> (global)
Namespace:
http://www.fpml.org/FpML-5/transparency
Type:
CommodityOption
Content:
complex, 1 attribute, 28 elements
Subst.Gr:
substitutes for product
Defined:
globally in fpml-com-5-13.xsd; see XML source
Used:
never

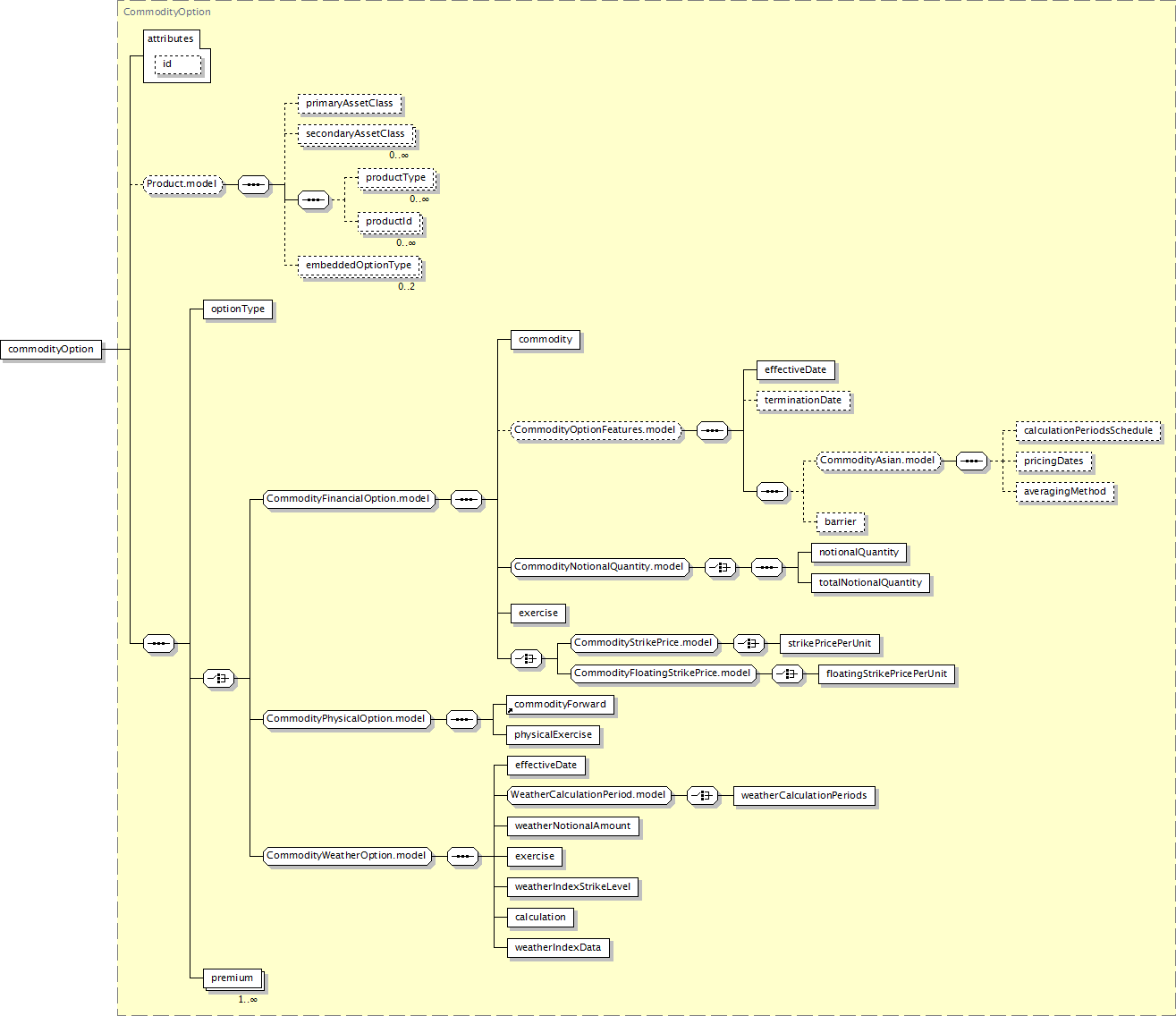

Component Diagram
XML Representation Summary
<commodityOption

id
 =
xsd:ID

>

Content:
(primaryAssetClass?, secondaryAssetClass*, productType*, productId*, embeddedOptionType[0..2])?, optionType, ((commodity, (effectiveDate, terminationDate?, (calculationPeriodsSchedule?, pricingDates?, averagingMethod?)?, barrier?)?, notionalQuantity, totalNotionalQuantity, exercise, (strikePricePerUnit | floatingStrikePricePerUnit)) | (commodityForward, physicalExercise) | (effectiveDate, weatherCalculationPeriods, weatherNotionalAmount, exercise, weatherIndexStrikeLevel, calculation, weatherIndexData)), premium+
</commodityOption>
Content model elements (28):
averagingMethod (defined in CommodityAsian.model group),
barrier,
calculation (in commodityOption),
calculationPeriodsSchedule (defined in CommodityAsian.model group),
commodity (in commodityOption),
commodityForward,
effectiveDate (in commodityOption),
effectiveDate (in commodityOption),
embeddedOptionType,
exercise (in commodityOption),
exercise (in commodityOption),
floatingStrikePricePerUnit,
notionalQuantity (defined in CommodityNotionalQuantity.model group),
optionType (in commodityOption),
physicalExercise (in commodityOption),
premium (in commodityOption),
pricingDates (defined in CommodityAsian.model group),
primaryAssetClass (defined in Product.model group),
productId,
productType (defined in Product.model group),
secondaryAssetClass,
strikePricePerUnit,
terminationDate (in commodityOption),
totalNotionalQuantity (defined in CommodityNotionalQuantity.model group),
weatherCalculationPeriods,
weatherIndexData (in commodityOption),
weatherIndexStrikeLevel,
weatherNotionalAmount (in commodityOption)
May be included in elements by substitutions (11):
feeTrade,
newTrade,
oldTrade,
originalTrade,
resultingTrade,
trade (defined in TradingEventsBase.model group),
trade (in affectedTransactions),
trade (in amendment),
trade (in dataDocument),
trade (in publicDisclosure),
trade (in withdrawal)
Annotation
Defines a commodity option product. The product support for financially-settled exercises or exercise into physical forward contracts written on precious and non-precious metals. options in FpML is based on the creation of a 'commodityOption' product. The product references the 'commodity' underlyer in order to support the underlying asset of the option.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="commodityOption" substitutionGroup="product" type="CommodityOption"/>
