element <dividendSwapOptionTransactionSupplement> (global)
Namespace:
http://www.fpml.org/FpML-5/transparency
Type:
DividendSwapOptionTransactionSupplement
Content:
complex, 1 attribute, 13 elements
Subst.Gr:
substitutes for product
Defined:
globally in fpml-dividend-swaps-5-13.xsd; see XML source
Used:
never

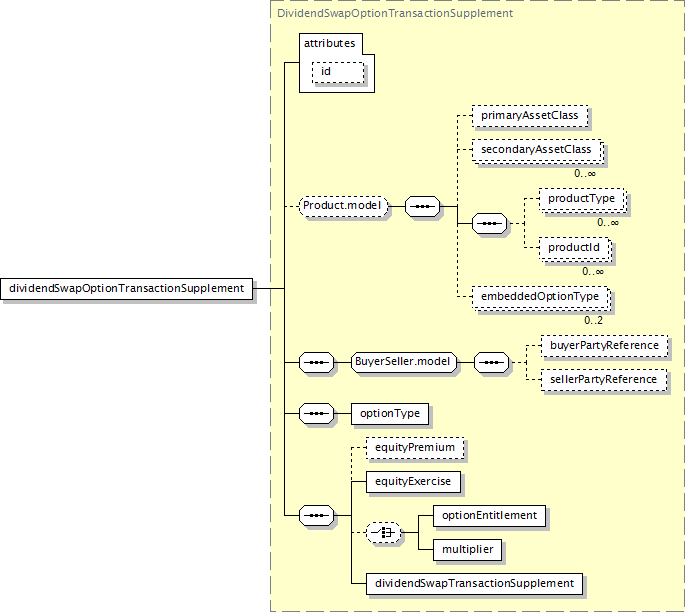

Component Diagram
XML Representation Summary
<dividendSwapOptionTransactionSupplement

id
 =
xsd:ID

>

Content:
(primaryAssetClass?, secondaryAssetClass*, productType*, productId*, embeddedOptionType[0..2])?, buyerPartyReference?, sellerPartyReference?, optionType, equityPremium?, equityExercise, (optionEntitlement | multiplier)?, dividendSwapTransactionSupplement
</dividendSwapOptionTransactionSupplement>
Content model elements (13):
buyerPartyReference (defined in BuyerSeller.model group),
dividendSwapTransactionSupplement (in dividendSwapOptionTransactionSupplement),
embeddedOptionType,
equityExercise (in dividendSwapOptionTransactionSupplement),
equityPremium (in dividendSwapOptionTransactionSupplement),
multiplier (in dividendSwapOptionTransactionSupplement),
optionEntitlement (in dividendSwapOptionTransactionSupplement),
optionType (defined in OptionBase complexType),
primaryAssetClass (defined in Product.model group),
productId,
productType (defined in Product.model group),
secondaryAssetClass,
sellerPartyReference (defined in BuyerSeller.model group)
May be included in elements by substitutions (11):
feeTrade,
newTrade,
oldTrade,
originalTrade,
resultingTrade,
trade (defined in TradingEventsBase.model group),
trade (in affectedTransactions),
trade (in amendment),
trade (in dataDocument),
trade (in publicDisclosure),
trade (in withdrawal)
Annotation
Specifies the structure of the dividend swap transaction supplement.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="dividendSwapOptionTransactionSupplement" substitutionGroup="product" type="DividendSwapOptionTransactionSupplement"/>
