complexType "EquityOptionTransactionSupplement"

Namespace:	http://www.fpml.org/FpML-5/transparency
Content:	complex, 1 attribute, 16 elements
Defined:	globally in fpml-eqd-5-13.xsd; see XML source
Includes:	definitions of 2 elements
Used:	at 1 location

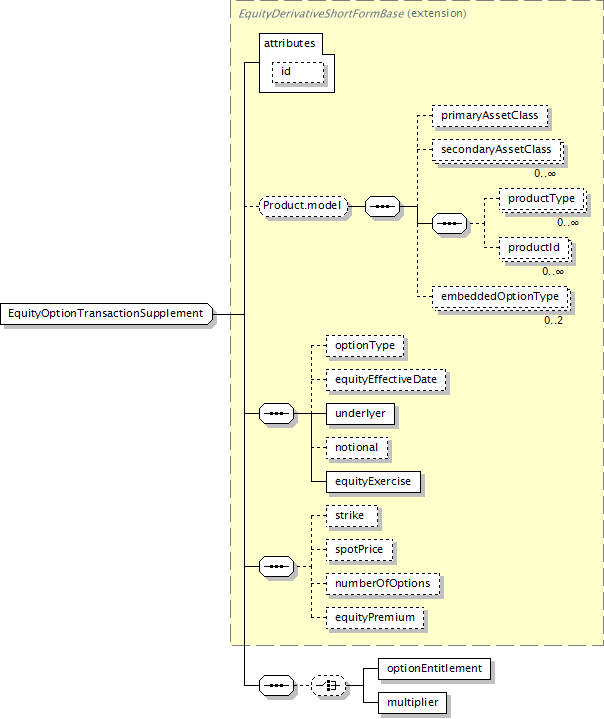

Component Diagram

XML Representation Summary

<...

xsd:ID

Content:

(primaryAssetClass?, secondaryAssetClass*, productType*, productId*, embeddedOptionType[0..2])?, optionType?, equityEffectiveDate?, underlyer, notional?, equityExercise, strike?, spotPrice?, numberOfOptions?, equityPremium?, (optionEntitlement | multiplier)?

</...>

Content Model Elements (16):

embeddedOptionType,

equityEffectiveDate,

equityExercise (defined in EquityDerivativeBase complexType),

equityPremium (in equityOptionTransactionSupplement),

multiplier (in equityOptionTransactionSupplement),

notional (defined in EquityDerivativeBase complexType),

numberOfOptions (in equityOptionTransactionSupplement),

optionEntitlement (in equityOptionTransactionSupplement),

optionType (defined in EquityDerivativeBase complexType),

primaryAssetClass (defined in Product.model group),

productId,

productType (defined in Product.model group),

secondaryAssetClass,

spotPrice,

strike (in equityOptionTransactionSupplement),

underlyer (defined in EquityDerivativeBase complexType)

All Direct / Indirect Based Elements (1):

equityOptionTransactionSupplement

Known Usage Locations

As direct type of elements (1):

equityOptionTransactionSupplement

Annotation

A type for defining equity option transaction supplements.

Type Definition Detail

Type Derivation Tree

Product (extension)

EquityDerivativeBase (extension)

EquityDerivativeShortFormBase (extension)

EquityOptionTransactionSupplement

XML Source (w/o annotations (3); see within schema source)

<xsd:complexType name="EquityOptionTransactionSupplement">

<xsd:complexContent>

<xsd:extension base="EquityDerivativeShortFormBase">

<xsd:sequence>

<xsd:choice minOccurs="0">

<xsd:element name="optionEntitlement" type="PositiveDecimal"/>

<xsd:element name="multiplier" type="PositiveDecimal"/>

</xsd:choice>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 2/16)

multiplier

Type:

PositiveDecimal, simple content

Specifies the contract multiplier that can be associated with an index option.

Simple Content

xsd:decimal

minExclusive:

XML Source (w/o annotations (1); see within schema source)
