complexType "FxDigitalAmericanExercise"
Namespace:
http://www.fpml.org/FpML-5/transparency
Content:
complex, 1 attribute, 3 elements
Defined:
globally in fpml-fx-5-13.xsd; see XML source
Includes:
definitions of 3 elements
Used:
at 2 locations

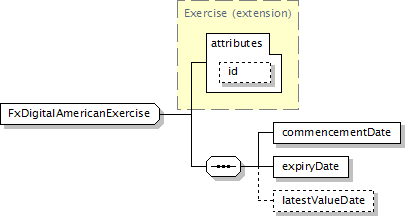

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
commencementDate, expiryDate, latestValueDate?
</...>
Content Model Elements (3):
commencementDate (defined in FxDigitalAmericanExercise complexType),
expiryDate (defined in FxDigitalAmericanExercise complexType),
latestValueDate
Known Direct Subtypes (1):
FxAmericanExercise
All Direct / Indirect Based Elements (2):
americanExercise (in fxDigitalOption),
americanExercise (in fxOption)
Known Usage Locations
Annotation
Descrines the characteristics for American exercise in FX digital options.
Type Definition Detail
Type Derivation Tree
Exercise (extension)
  FxDigitalAmericanExercise
XML Source (w/o annotations (4); see within schema source)
<xsd:complexType name="FxDigitalAmericanExercise">
<xsd:complexContent>
<xsd:extension base="Exercise">
<xsd:sequence>
<xsd:element name="commencementDate" type="AdjustableOrRelativeDate"/>
<xsd:element name="expiryDate" type="xsd:date"/>
<xsd:element minOccurs="0" name="latestValueDate" type="xsd:date"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 3/3)
commencementDate
Type:
AdjustableOrRelativeDate, complex content
The earliest date on which the option can be exercised.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="commencementDate" type="AdjustableOrRelativeDate"/>
expiryDate
Type:
xsd:date, predefined, simple content
The latest date on which the option can be exercised.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="expiryDate" type="xsd:date"/>
latestValueDate
Type:
xsd:date, predefined, simple content
The latest date on which both currencies traded will settle.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="latestValueDate" type="xsd:date"/>
