complexType "FxOptionPremium"
Namespace:
http://www.fpml.org/FpML-5/transparency
Content:
complex, 1 attribute, 2 elements
Defined:
globally in fpml-fx-5-13.xsd; see XML source
Includes:
definition of 1 element
Used:
at 5 locations

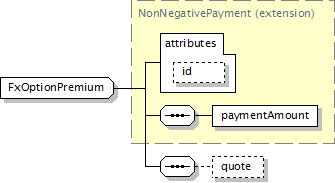

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
paymentAmount, quote?
</...>
Content Model Elements (2):
paymentAmount (defined in NonNegativePayment complexType),
quote (defined in FxOptionPremium complexType)
All Direct / Indirect Based Elements (5):
premium (in fxAccrualDigitalOption),
premium (in fxAccrualOption),
premium (in fxDigitalOption),
premium (in fxOption),
premium (in fxRangeAccrual)
Known Usage Locations
Annotation
A type that specifies the premium exchanged for a single option trade or option strategy.
Type Definition Detail
Type Derivation Tree
PaymentBase (extension)
  PaymentBaseExtended (extension)
      NonNegativePayment (extension)
          FxOptionPremium
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="FxOptionPremium">
<xsd:complexContent>
<xsd:extension base="NonNegativePayment">
<xsd:sequence>
<xsd:element minOccurs="0" name="quote" type="PremiumQuote"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/2)
quote
Type:
PremiumQuote, complex content
This is the option premium as quoted. It is expected to be consistent with the premiumAmount and is for information only.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="quote" type="PremiumQuote"/>
