element <farLeg> (local)
Namespace:
http://www.fpml.org/FpML-5/transparency
Type:
FxSwapLeg
Content:
complex, 1 attribute, 11 elements
Defined:
locally within FxSwap complexType in fpml-fx-5-13.xsd; see XML source

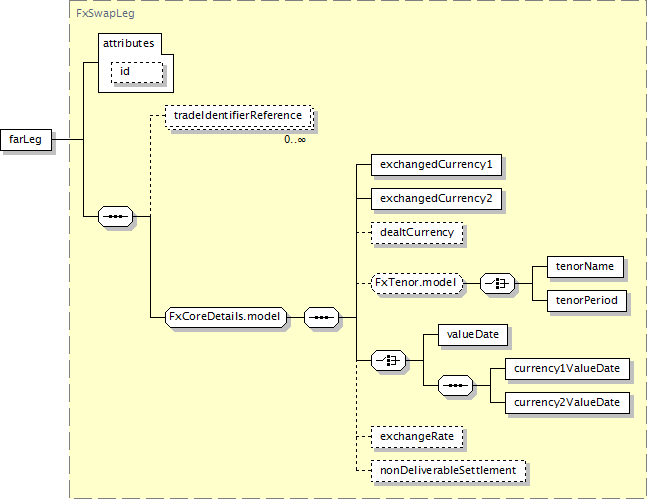

Component Diagram
XML Representation Summary
<farLeg

id
 =
xsd:ID

>

Content:
tradeIdentifierReference*, exchangedCurrency1, exchangedCurrency2, dealtCurrency?, (tenorName | tenorPeriod)?, (valueDate | (currency1ValueDate, currency2ValueDate)), exchangeRate?, nonDeliverableSettlement?
</farLeg>
Content model elements (11):
currency1ValueDate,
currency2ValueDate,
dealtCurrency,
exchangeRate (defined in FxCoreDetails.model group),
exchangedCurrency1 (defined in FxCoreDetails.model group),
exchangedCurrency2 (defined in FxCoreDetails.model group),
nonDeliverableSettlement,
tenorName,
tenorPeriod (defined in FxTenor.model group),
tradeIdentifierReference,
valueDate (defined in FxCoreDetails.model group)
Included in content model of elements (1):
fxSwap
Annotation
The FX transaction with the latest value date.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="farLeg" type="FxSwapLeg"/>
