element <exchangeRate> (local)
Namespace:
http://www.fpml.org/FpML-5/transparency
Type:
ExchangeRate
Content:
complex, 6 elements
Defined:
locally within FxCoreDetails.model group in fpml-fx-5-13.xsd; see XML source

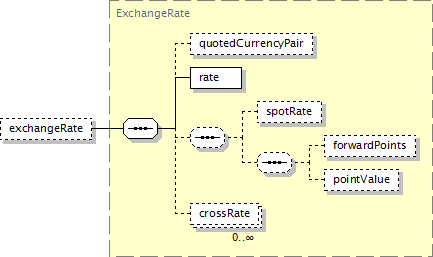

Component Diagram
XML Representation Summary
<exchangeRate>

Content:
quotedCurrencyPair?, rate, (spotRate?, (forwardPoints?, pointValue?)?)?, crossRate*
</exchangeRate>
Content model elements (6):
crossRate (defined in ExchangeRate complexType),
forwardPoints (defined in ExchangeRate complexType),
pointValue (defined in ExchangeRate complexType),
quotedCurrencyPair (defined in ExchangeRate complexType),
rate (defined in ExchangeRate complexType),
spotRate (defined in ExchangeRate complexType)
Included in content model of elements (3):
farLeg, fxSingleLeg, nearLeg
Annotation
The rate of exchange between the two currencies.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="exchangeRate" type="ExchangeRate"/>
