complexType "FxExpirySchedule"
Namespace:
http://www.fpml.org/FpML-5/transparency
Content:
complex, 1 attribute, 13 elements
Defined:
globally in fpml-fx-targets-5-13.xsd; see XML source
Includes:
definition of 1 element
Used:
at 2 locations

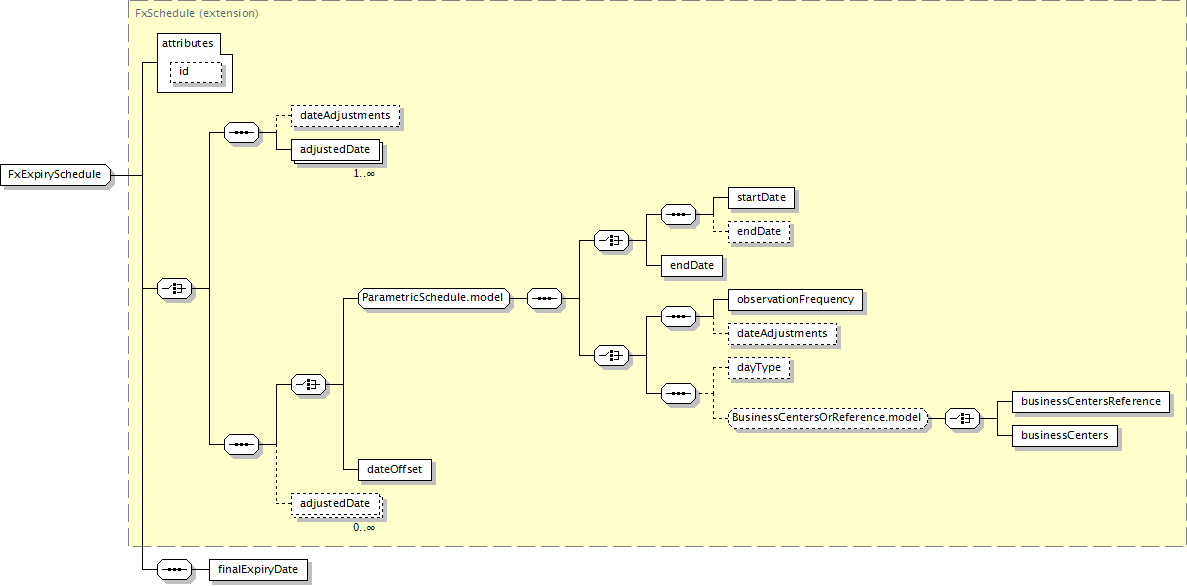

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
((dateAdjustments?, adjustedDate+) | (((((startDate, endDate?) | endDate), ((observationFrequency, dateAdjustments?) | (dayType?, (businessCentersReference | businessCenters)?))) | dateOffset), adjustedDate*)), finalExpiryDate
</...>
Content Model Elements (13):
adjustedDate (defined in FxSchedule complexType),
adjustedDate (defined in FxSchedule complexType),
businessCenters (defined in BusinessCentersOrReference.model group),
businessCentersReference,
dateAdjustments (defined in FxSchedule complexType),
dateAdjustments (defined in ParametricSchedule.model group),
dateOffset (defined in FxSchedule complexType),
dayType (defined in ParametricSchedule.model group),
endDate (defined in ParametricSchedule.model group),
endDate (defined in ParametricSchedule.model group),
finalExpiryDate,
observationFrequency,
startDate (defined in ParametricSchedule.model group)
All Direct / Indirect Based Elements (2):
expirySchedule (defined in FxExpiryDateOrSchedule.model group),
expirySchedule (in fxTargetKnockoutForward)
Known Usage Locations
Annotation
Defines the expiry/observation schedule of the target.
Type Definition Detail
Type Derivation Tree
FxSchedule (extension)
  FxExpirySchedule
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="FxExpirySchedule">
<xsd:complexContent>
<xsd:extension base="FxSchedule">
<xsd:sequence>
<xsd:element name="finalExpiryDate" type="xsd:date"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/13)
finalExpiryDate
Type:
xsd:date, predefined, simple content
The final expiry date facilitates informing the final date without having to process all expiry dates in the schedule.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="finalExpiryDate" type="xsd:date"/>
