complexType "CancelableProvision"
Namespace:
http://www.fpml.org/FpML-5/transparency
Content:
complex, 2 elements
Defined:
globally in fpml-ird-5-13.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 1 location

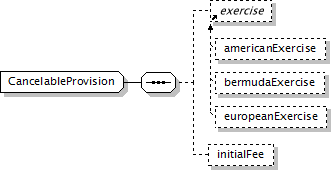

Component Diagram
XML Representation Summary
<...>

Content:
exercise?, initialFee?
</...>
Content Model Elements (2):
exercise, initialFee
All Direct / Indirect Based Elements (1):
cancelableProvision
Known Usage Locations
Annotation
A type defining the right of a party to cancel a swap transaction on the specified exercise dates. The provision is for 'walkaway' cancellation (i.e. the fair value of the swap is not paid). A fee payable on exercise can be specified.
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="CancelableProvision">
<xsd:sequence>
<xsd:element minOccurs="0" ref="exercise"/>
<xsd:element minOccurs="0" name="initialFee" type="SimplePayment"/>
</xsd:sequence>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 2/2)
exercise
Type:
Exercise, empty content
Abstract:
(may not be used directly in instance XML documents)
Subst.Gr:
substituted with 3 elements
XML Source (see within schema source)
<xsd:element minOccurs="0" ref="exercise"/>
initialFee
Type:
SimplePayment, complex content
An initial fee for the cancelable option.
XML Source (w/o annotations (1); see within schema source)
<xsd:element minOccurs="0" name="initialFee" type="SimplePayment"/>
