complexType "EuropeanExercise"
Namespace:
http://www.fpml.org/FpML-5/transparency
Content:
complex, 1 attribute, 1 element
Defined:
globally in fpml-shared-5-13.xsd; see XML source
Includes:
definition of 1 element
Used:
at 1 location

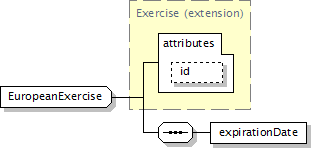

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
expirationDate
</...>
Content Model Elements (1):
expirationDate (in europeanExercise)
All Direct / Indirect Based Elements (1):
europeanExercise
Known Usage Locations
Annotation
A type defining the exercise period for a European style option together with any rules governing the notional amount of the underlying which can be exercised on any given exercise date and any associated exercise fees.
Type Definition Detail
Type Derivation Tree
Exercise (extension)
  EuropeanExercise
XML Source (w/o annotations (2); see within schema source)
<xsd:complexType name="EuropeanExercise">
<xsd:complexContent>
<xsd:extension base="Exercise">
<xsd:sequence>
<xsd:element name="expirationDate" type="AdjustableOrRelativeDate"/>
</xsd:sequence>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 1/1)
expirationDate
Type:
AdjustableOrRelativeDate, complex content
The last day within an exercise period for an American style option. For a European style option it is the only day within the exercise period.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="expirationDate" type="AdjustableOrRelativeDate"/>
