complexType "ResetFrequency"
Namespace:
http://www.fpml.org/FpML-5/transparency
Content:
complex, 1 attribute, 2 elements
Defined:
globally in fpml-shared-5-13.xsd; see XML source
Used:
at 2 locations

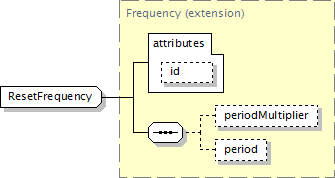

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
periodMultiplier?, period?
</...>
Content Model Elements (2):
period (defined in Frequency complexType),
periodMultiplier (defined in Frequency complexType)
All Direct / Indirect Based Elements (2):
resetFrequency (in interestLegResetDates),
resetFrequency (in resetDates)
Known Usage Locations
Annotation
A type defining the reset frequency. In the case of a weekly reset, also specifies the day of the week that the reset occurs. If the reset frequency is greater than the calculation period frequency the this implies that more or more reset dates is established for each calculation period and some form of rate averaginhg is applicable. The specific averaging method of calculation is specified in FloatingRateCalculation. In case the reset frequency is of value T (term), the period is defined by the swap\swapStream\calculationPerioDates\effectiveDate and the swap\swapStream\calculationPerioDates\terminationDate.
Type Definition Detail
Type Derivation Tree
Frequency (extension)
  ResetFrequency
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="ResetFrequency">
<xsd:complexContent>
<xsd:extension base="Frequency"/>
</xsd:complexContent>
</xsd:complexType>
