complexType "SharedAmericanExercise"

Namespace:	http://www.fpml.org/FpML-5/transparency
Content:	complex, 1 attribute, 2 elements
Defined:	globally in fpml-shared-5-13.xsd; see XML source
Includes:	definitions of 2 elements
Used:	at 2 locations

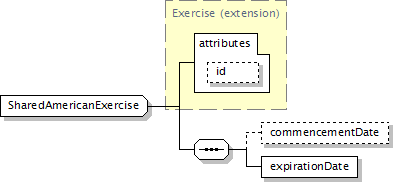

Component Diagram

XML Representation Summary

<...

xsd:ID

Content:

</...>

Content Model Elements (2):

Known Direct Subtypes (2):

All Direct / Indirect Based Elements (2):

Known Usage Locations

In derivations of other global types (2):

EquityAmericanExercise (as extension base),

EquityBermudaExercise (as extension base)

Annotation

TBA

Type Definition Detail

Type Derivation Tree

Exercise (extension)

SharedAmericanExercise

XML Source (w/o annotations (3); see within schema source)

<xsd:complexType name="SharedAmericanExercise">

<xsd:complexContent>

<xsd:extension base="Exercise">

<xsd:sequence>

<xsd:element minOccurs="0" name="commencementDate" type="AdjustableOrRelativeDate"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 2/2)

Type:

The first day of the exercise period for an American style option.

XML Source (w/o annotations (1); see within schema source)

<xsd:element minOccurs="0" name="commencementDate" type="AdjustableOrRelativeDate"/>

Type:

The last day within an exercise period for an American style option. For a European style option it is the only day within the exercise period.

XML Source (w/o annotations (1); see within schema source)
