complexType "BasicQuotation"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 1 attribute, 15 elements
Defined:
globally in fpml-asset-5-13.xsd; see XML source
Includes:
definition of 1 attribute
Used:
at 4 locations

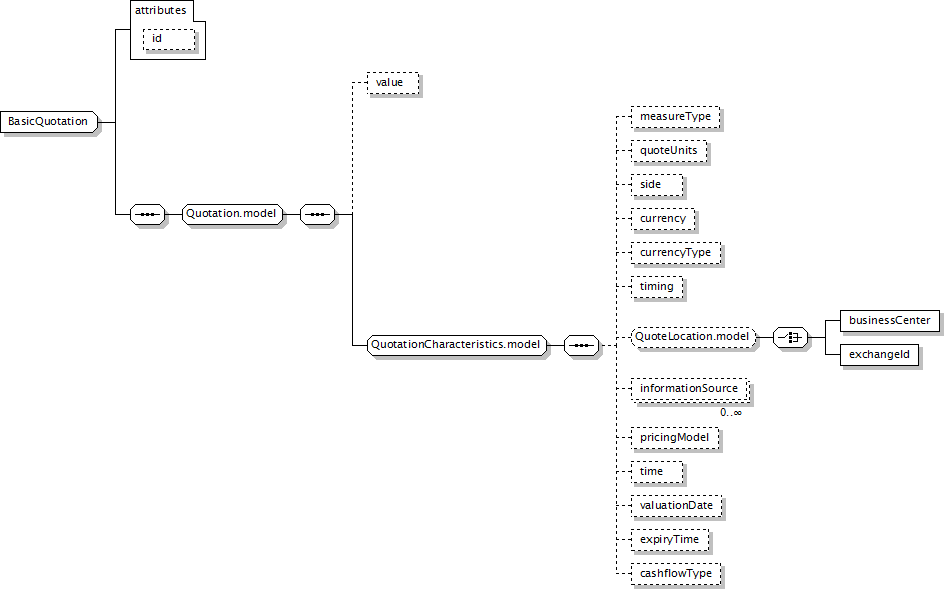

Component Diagram
XML Representation Summary
<...

id
 =
xsd:ID

>

Content:
value?, measureType?, quoteUnits?, side?, currency?, currencyType?, timing?, (businessCenter | exchangeId)?, informationSource*, pricingModel?, time?, valuationDate?, expiryTime?, cashflowType?
</...>
Content Model Elements (15):
businessCenter (defined in QuoteLocation.model group),
cashflowType (defined in QuotationCharacteristics.model group),
currency (defined in QuotationCharacteristics.model group),
currencyType,
exchangeId (defined in QuoteLocation.model group),
expiryTime (defined in QuotationCharacteristics.model group),
informationSource (defined in QuotationCharacteristics.model group),
measureType,
pricingModel,
quoteUnits (defined in QuotationCharacteristics.model group),
side (defined in QuotationCharacteristics.model group),
time (defined in QuotationCharacteristics.model group),
timing,
valuationDate (defined in QuotationCharacteristics.model group),
value (defined in Quotation.model group)
All Direct / Indirect Based Elements (4):
quote (defined in EventValuation.model group),
quote (in assetQuote),
quote (in pricing),
quote (in standardProduct)
Known Usage Locations
Annotation
Some kind of numerical measure about an asset, eg. its NPV, together with characteristics of that measure.
XML Source (w/o annotations (1); see within schema source)
<xsd:complexType name="BasicQuotation">
<xsd:sequence>
<xsd:group ref="Quotation.model"/>
</xsd:sequence>
<xsd:attribute name="id" type="xsd:ID"/>
</xsd:complexType>
Attribute Detail (all declarations; defined within this component only; 1/1)
id
Type:
xsd:ID, predefined
Use:
optional
XML Source (see within schema source)
<xsd:attribute name="id" type="xsd:ID"/>
