complexType "BondOption"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 1 attribute, 26 elements
Defined:	globally in fpml-bond-option-5-13.xsd; see XML source
Includes:	definition of 1 element
Used:	at 1 location

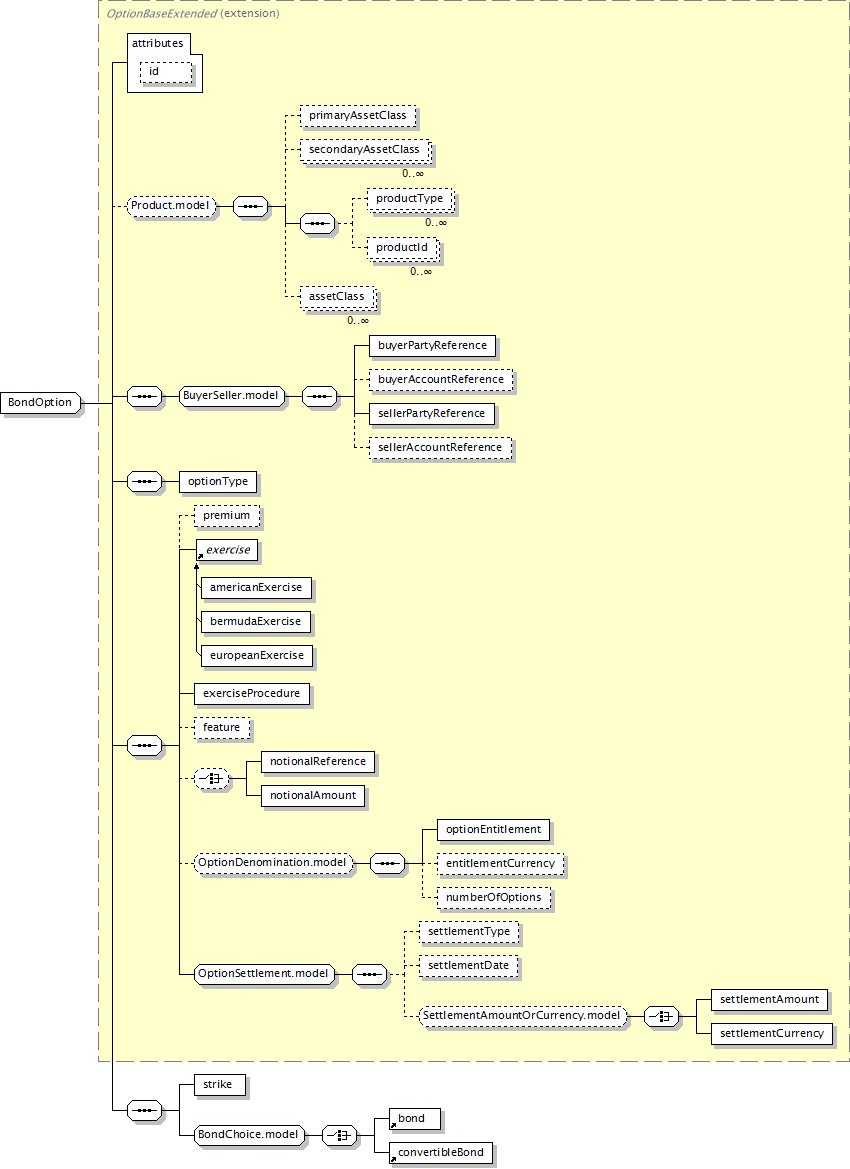

Component Diagram

XML Representation Summary

<...

xsd:ID

Content:

</...>

Content Model Elements (26):

assetClass,

bond,

buyerAccountReference,

buyerPartyReference (defined in BuyerSeller.model group),

convertibleBond,

entitlementCurrency,

exercise,

exerciseProcedure (defined in OptionBaseExtended complexType),

feature (defined in OptionBaseExtended complexType),

notionalAmount (defined in OptionBaseExtended complexType),

notionalReference (defined in OptionBaseExtended complexType),

numberOfOptions (defined in OptionDenomination.model group),

optionEntitlement (defined in OptionDenomination.model group),

optionType (defined in OptionBase complexType),

premium (defined in OptionBaseExtended complexType),

primaryAssetClass,

productId (defined in Product.model group),

productType (defined in Product.model group),

secondaryAssetClass,

sellerAccountReference,

sellerPartyReference (defined in BuyerSeller.model group),

settlementAmount (defined in SettlementAmountOrCurrency.model group),

settlementCurrency (defined in SettlementAmountOrCurrency.model group),

settlementDate (defined in OptionSettlement.model group),

settlementType (defined in OptionSettlement.model group),

strike (in bondOption)

All Direct / Indirect Based Elements (1):

bondOption

Known Usage Locations

As direct type of elements (1):

bondOption

Annotation

A Bond Option

Type Definition Detail

Type Derivation Tree

Product (extension)

Option (extension)

OptionBase (extension)

OptionBaseExtended (extension)

BondOption

XML Source (w/o annotations (2); see within schema source)

<xsd:complexType name="BondOption">

<xsd:complexContent>

<xsd:extension base="OptionBaseExtended">

<xsd:sequence>

<xsd:element name="strike" type="BondOptionStrike"/>

<xsd:group ref="BondChoice.model"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>

Content Element Detail (all declarations; defined within this component only; 1/26)

strike

Type:

BondOptionStrike, complex content

Strike of the the Bond Option.

XML Source (w/o annotations (1); see within schema source)

<xsd:element name="strike" type="BondOptionStrike"/>
