complexType "Option"

Namespace:	http://www.fpml.org/FpML-5/confirmation
Content:	complex, 1 attribute, 9 elements
Abstract:	(cannot be assigned directly to elements used in instance XML documents)
Defined:	globally in fpml-option-shared-5-13.xsd; see XML source
Used:	at 7 locations

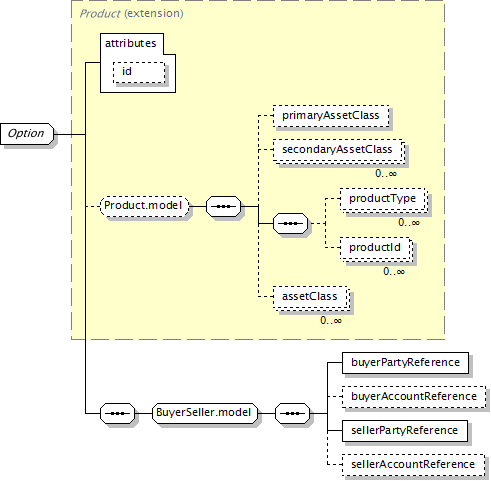

Component Diagram

XML Representation Summary

<...

=

xsd:ID

>

Content:

(primaryAssetClass?, secondaryAssetClass*, productType*, productId*, assetClass*)?, buyerPartyReference, buyerAccountReference?, sellerPartyReference, sellerAccountReference?

</...>

Content Model Elements (9):

buyerAccountReference,

buyerPartyReference (defined in BuyerSeller.model group),

primaryAssetClass,

productId (defined in Product.model group),

productType (defined in Product.model group),

secondaryAssetClass,

sellerAccountReference,

sellerPartyReference (defined in BuyerSeller.model group)

Known Direct Subtypes (7):

CommodityBasketOption, CommodityDigitalOption, FxAccrualDigitalOption, FxAccrualOption, FxDigitalOption, FxOption, OptionBase

Known Indirect Subtypes (5):

BondOption, CreditDefaultSwapOption, DividendSwapOptionTransactionSupplement, OptionBaseExtended, VarianceOptionTransactionSupplement

All Direct / Indirect Based Elements (10):

bondOption, commodityBasketOption, commodityDigitalOption, creditDefaultSwapOption, dividendSwapOptionTransactionSupplement, fxAccrualDigitalOption, fxAccrualOption, fxDigitalOption, fxOption, varianceOptionTransactionSupplement

Known Usage Locations

In derivations of other global types (7):

CommodityBasketOption (as extension base),

CommodityDigitalOption (as extension base),

FxAccrualDigitalOption (as extension base),

FxAccrualOption (as extension base),

FxDigitalOption (as extension base),

FxOption (as extension base),

OptionBase (as extension base)

Annotation

A type for defining the common features of options. Buyer/seller information is not normally used in Transparency view but is optional in case the information is needed for administrative purposes such as Reporting Party determination.

Type Definition Detail

Type Derivation Tree

Product (extension)

Option

XML Source (w/o annotations (1); see within schema source)

<xsd:complexType abstract="true" name="Option">

<xsd:complexContent>

<xsd:extension base="Product">

<xsd:sequence>

<xsd:group ref="BuyerSeller.model"/>

</xsd:sequence>

</xsd:extension>

</xsd:complexContent>

</xsd:complexType>
