complexType "CreditChangeEvent"
Namespace:
http://www.fpml.org/FpML-5/confirmation
Content:
complex, 11 elements
Defined:
globally in fpml-business-events-5-13.xsd; see XML source
Includes:
definitions of 2 elements
Used:
at 1 location

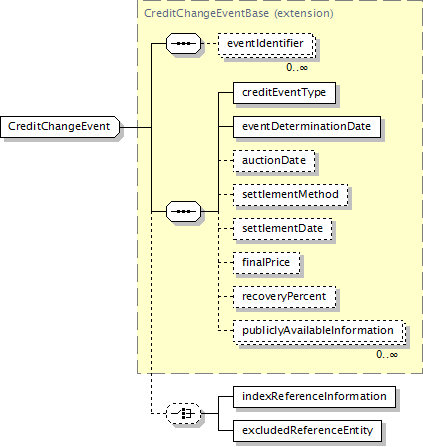

Component Diagram
XML Representation Summary
<...>

Content:
eventIdentifier*, creditEventType, eventDeterminationDate, auctionDate?, settlementMethod?, settlementDate?, finalPrice?, recoveryPercent?, publiclyAvailableInformation*, (indexReferenceInformation | excludedReferenceEntity)?
</...>
Content Model Elements (11):
auctionDate,
creditEventType,
eventDeterminationDate,
eventIdentifier (defined in AbstractEvent complexType),
excludedReferenceEntity (in creditChangeEvent),
finalPrice,
indexReferenceInformation (in creditChangeEvent),
publiclyAvailableInformation (in creditChangeEvent),
recoveryPercent,
settlementDate (in creditChangeEvent),
settlementMethod (in creditChangeEvent)
All Direct / Indirect Based Elements (1):
creditChangeEvent
Known Usage Locations
Annotation
A structure indicating that a trade has changed due to a credit event, including both shared (by single name, index and basket) and index specific components.
Type Definition Detail
Type Derivation Tree
AbstractEvent (extension)
  ChangeEvent (extension)
      CreditChangeEventBase (extension)
          CreditChangeEvent
XML Source (w/o annotations (3); see within schema source)
<xsd:complexType name="CreditChangeEvent">
<xsd:complexContent>
<xsd:extension base="CreditChangeEventBase">
<xsd:choice minOccurs="0">
<xsd:element name="indexReferenceInformation" type="CreditEventIndexReferenceInformation"/>
<xsd:element name="excludedReferenceEntity" type="ReferenceInformation"/>
</xsd:choice>
</xsd:extension>
</xsd:complexContent>
</xsd:complexType>
Content Element Detail (all declarations; defined within this component only; 2/11)
excludedReferenceEntity
Type:
ReferenceInformation, complex content
The corporate or sovereign entity (and, optionally, associated obligations) in a basket impacted by the credit event.
XML Source (w/o annotations (1); see within schema source)
<xsd:element name="excludedReferenceEntity" type="ReferenceInformation"/>
indexReferenceInformation
Type:
CreditEventIndexReferenceInformation, complex content
A type defining the Credit Default Swap Index impacted by the credit event.
XML Source (w/o annotations (1); see within schema source)
